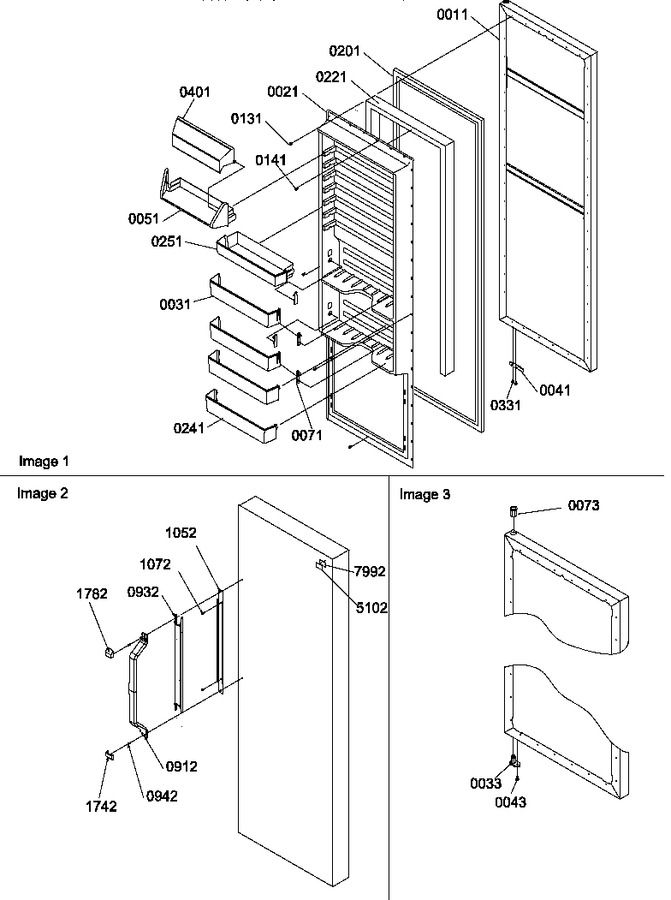

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10881312L		Assy, Ref Dr Fm (alm)		Appelez-nous	-
21	10866101		Liner-ref Dr		Appelez-nous	-
31	10520405		Shelf, Chiller				$ 31.15
33	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
41	C8972403		Stop, Door (blk)		Appelez-nous	-
43	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	12083301		Shelf, Dairy		Appelez-nous	-
71	10202001		Clip, Retainer		Appelez-nous	-
73	10961001		Bushing, Door (wht)		Appelez-nous	-
131	M0219730		Screw				$ 7.65
141	M0226705		Screw, Shoulder		Appelez-nous	-
201	10359708		Gasket, Door (w Ref)		Appelez-nous	-
221	B0523563		Insulation Ft. K		Appelez-nous	-
241	10521812		Shelf-ref Door		Appelez-nous	-
251	12083401		Bucket, Ref Door		Appelez-nous	-
331	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
401	10527316		Door-dairy		Appelez-nous	-
912	12139306		Handle, Door (black)		Appelez-nous	-
932	10810403		Trim- E Ctr Dr		Appelez-nous	-
942	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
1052	10852211		Ret-trim		Appelez-nous	-
1072	M0216517		Screw		Appelez-nous	-
1742	10975805		Cap-e Dr Handle		Appelez-nous	-
1782	10975806		Cap-e Dr Handle		Appelez-nous	-
5102	10992111		Insert-l Nameplate		Appelez-nous	-
7992	10992002		Base, Nameplate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
