Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10946006		Extr-rear Shelf		Appelez-nous	-
21	10875305		Frame, Glass Shelf		Appelez-nous	-
24	M0117303		Clip, Grille				$ 5.65
31	Y10370071		Glass, Shelf		Appelez-nous	-
41	10459910		Extr., Shelf Frt		Appelez-nous	-
62	10370027		Glass Shelf		Appelez-nous	-
63	10370028		Glass, Shelf		Appelez-nous	-
82	10469608		Frame, Crisper		Appelez-nous	-
83	10469603		Frame, Crisper		Appelez-nous	-
92	10873909		Trim-crisp Front		Appelez-nous	-
93	10873909		Trim-crisp Front		Appelez-nous	-
394	12321806		Kit, Toe Grille (blk)		Appelez-nous	-

View Diagram in Separate Window Print Part List

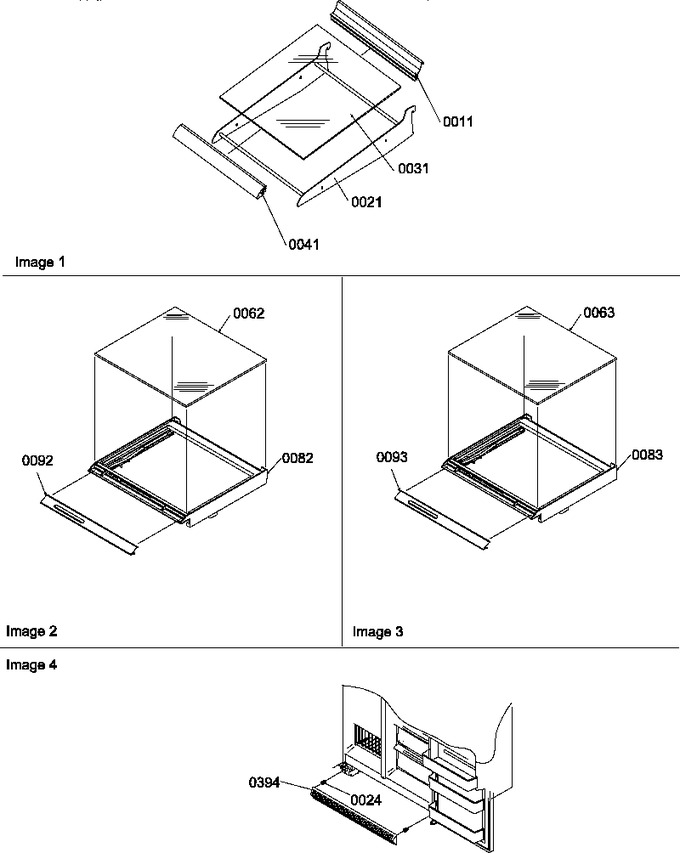

Diagram for SM22TBL (BOM: P1190212W L)
