Diagram # Part Number Description Series Availability Ships Price Add to Cart
24 M0117302 Clip, Grille Appelez-nous -
41 C8971903 Tunnel, Heat Exchanger Appelez-nous -
53 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

111 12991101 Screw, Sm   (Replaces: M0210816) Special Order $ 13.47

113 M0580007 Grommet, Screw Appelez-nous -
161 D7785401 Grille-rtn Air Appelez-nous -
163 D7789808 Ladder, Cantilever Appelez-nous -
172 M0580007 Grommet, Screw Appelez-nous -
173 D7789809 Ladder, Cantilever Appelez-nous -
191 12023401 Assy, Fill Tube Appelez-nous -
231 A3080001 Plug, Button (blk) Appelez-nous -
261 10923101 Tunnel, Retainer Appelez-nous -
302 M0581001 Grommet, Screw Appelez-nous -
303 M0581001 Grommet, Screw Appelez-nous -
331 Y00000000 See Note L Vt Mull-pnt Appelez-nous -
381 10703701 Tunnel, Wire Appelez-nous -
394 10492005 Assy, Toe Grille (almond) Appelez-nous -
411 D7716409 Housing-ref Light Appelez-nous -
421 D7760102 Housing Frz Light Appelez-nous -
431 W11384469 Switch   (Replaces: C3680304) In-Stock Immediately $ 39.09

441 D7297603 Cover, Light Sw Appelez-nous -
471 B5733302 Clip, Ground Appelez-nous -
491 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

8131 12146801 Spacer, Btm Hinge Appelez-nous -
8141 12146802 Shim-lh Bot Hinge Appelez-nous -
8151 A4539631 Rivet, Pop (wht) Appelez-nous -
8161 12147602 Cam-hinge Adj Appelez-nous -
8211 12187601 Shim-bot Hinge Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

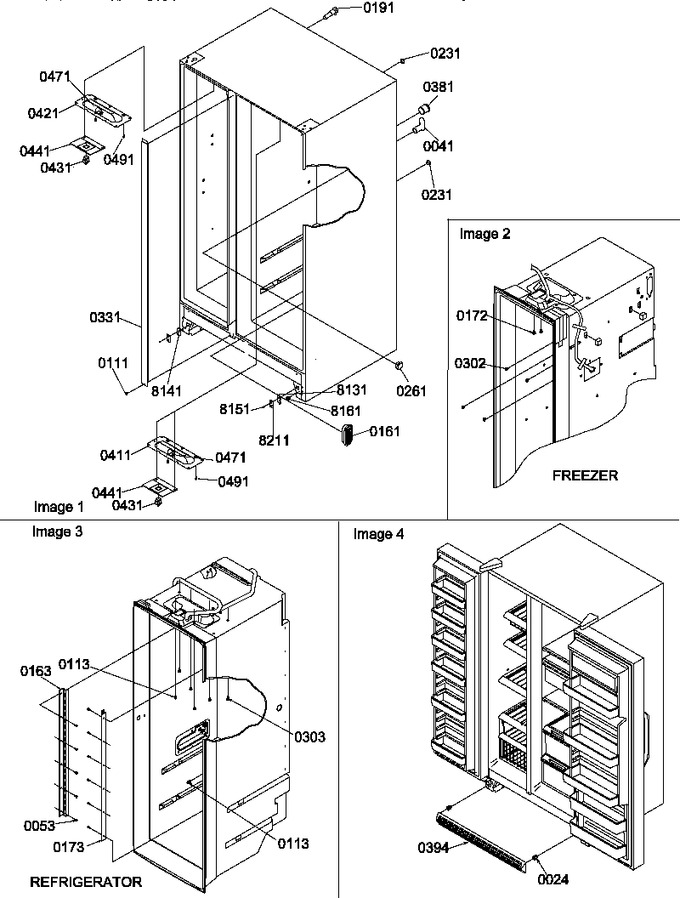

Diagram for SS21SL (BOM: P1193802W L)
