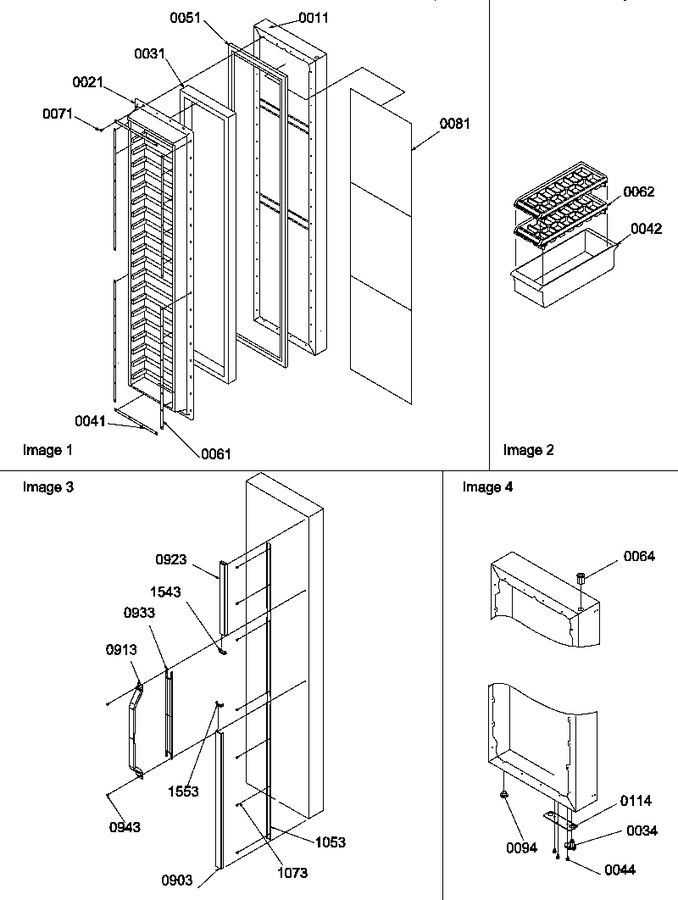

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10948101L		Ass`y, Frz Dr(alm)		Appelez-nous	-
21	10946401		Liner, Conv Fz Door		Appelez-nous	-
31	B0523563		Insulation Ft. K		Appelez-nous	-
34	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
41	C8982801		Retainer, Door Liner		Appelez-nous	-
42	10423128		Bin-utility		Appelez-nous	-
44	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	10359702		Gasket (w Frz Dr)		Appelez-nous	-
61	D7828601		Retainer, Door Liner		Appelez-nous	-
62	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
64	10961001		Bushing, Door (wht)		Appelez-nous	-
71	M0219730		Screw				$ 7.65
81	12016905		Insul, Batt		Appelez-nous	-
94	M0310338		Plug Button Almond		Appelez-nous	-
114	10161804		Stop-l Door		Appelez-nous	-
903	10810509		Trim, Bottom Door		Appelez-nous	-
913	12139302		Handle, Door (almond)		Appelez-nous	-
923	10810309		Trim-l Top Fz Dr		Appelez-nous	-
933	10810402		Trim, L Ctr Door		Appelez-nous	-
943	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
1053	10852213		Retainer-fz Trim		Appelez-nous	-
1073	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
1543	10953113		Insert, Door Trim		Appelez-nous	-
1553	10953114		Insert, Trim (almond)		Appelez-nous	-
