SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts And Toe Grille


03 - Control Assy


04 - Deli And Crisper Assemblies


05 - Drain System, Rollers, And Evap Assy


06 - Fz Door And Accessories


07 - Fz Shelves And Light


08 - Ice Maker Parts And Add On Ice Maker Kit


09 - Machine Compartment


10 - Ref Door And Accessories


11 - Ref/fz Shelves, Lights, And Hinges

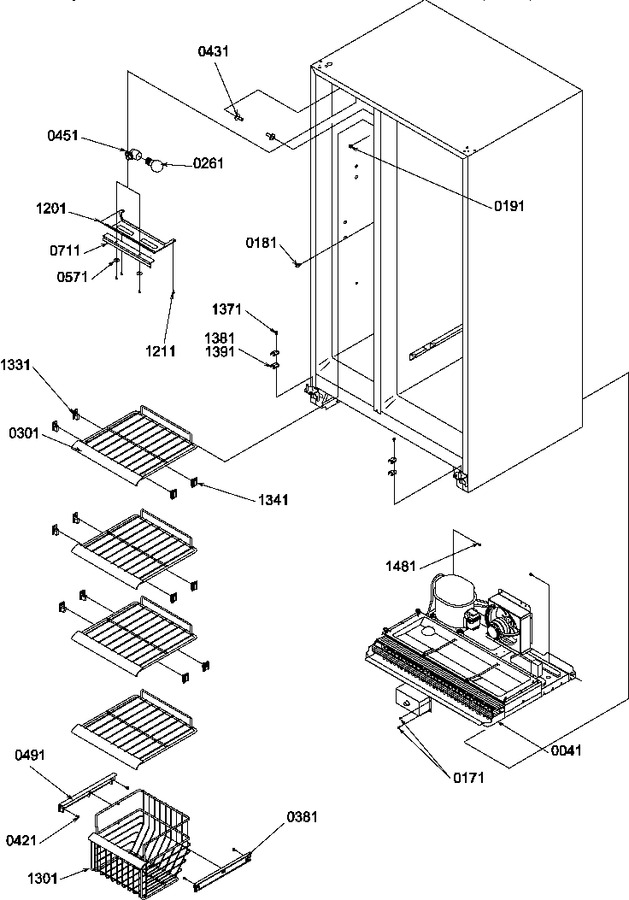

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
41	Y00000000		See Note Mc Assy		Appelez-nous	-
171	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
181	M0322202		Tie Wire		Appelez-nous	-
191	M0580007		Grommet, Screw		Appelez-nous	-
261	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
301	12012605		Shelf-sta Fz		Appelez-nous	-
381	10972801		Rail, Shelf (rt)		Appelez-nous	-
421	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
431	M0310305		Plug, Button (wht)		Appelez-nous	-
451	C8973404		Socket-light		Appelez-nous	-
491	12015101		Rail, Shelf (lt)		Appelez-nous	-
571	M0270508		Washer		Appelez-nous	-
711	10014715		Shield, Light		Appelez-nous	-
1201	10493302		Cover, Frz Light		Appelez-nous	-
1211	M0238846		Screw-sm		Appelez-nous	-
1301	12012001		Basket, Freezer		Appelez-nous	-
1331	12015002		Support, Shelf (lt)				$ 7.38
1341	WP10941102		Support, Shelf (rt)				$ 11.81
1371	WP489128		Screw   (Replaces: M0220417)				$ 11.40
1381	B8387703		Shim, Door Closure		Appelez-nous	-
1391	WP67005716		Shim, Dr Closure (blk)   (Replaces: B8387704)				$ 7.83
1481	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06

    View Diagram in Separate Window       Print Part List
