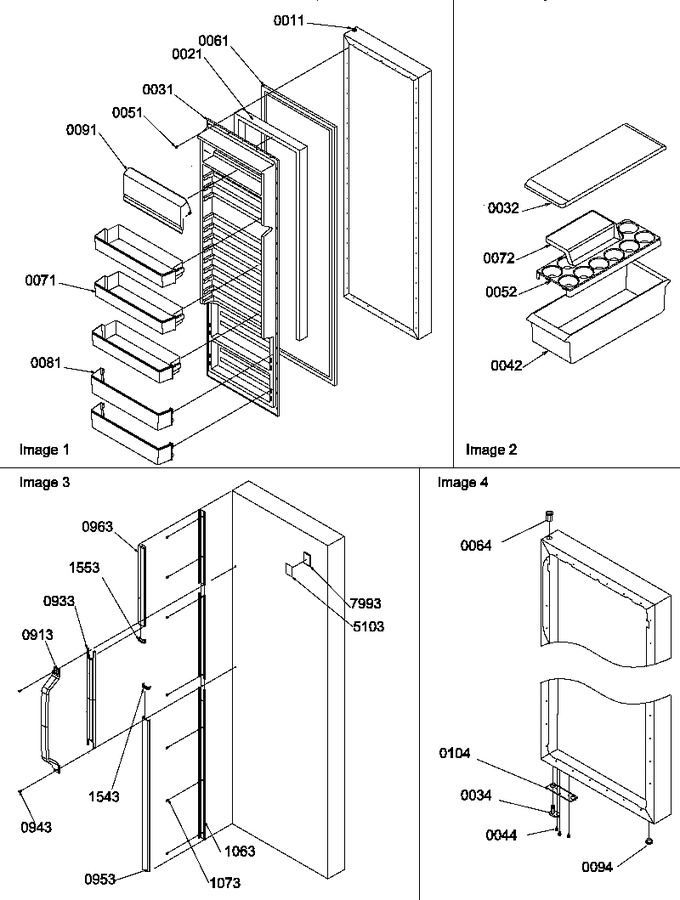

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10937901L		Assy Ref. Door Fm		Appelez-nous	-
21	B0523563		Insulation Ft. K		Appelez-nous	-
31	10946301		Liner, Ref Door		Appelez-nous	-
32	10436404		Lid, Utility				$ 60.85
34	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.55
42	10423128		Bin-utility		Appelez-nous	-
44	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
51	M0219730		Screw				$ 7.65
52	10436505		Tray, Egg		Appelez-nous	-
61	10359705		Gasket, Door (w Ref)		Appelez-nous	-
64	10961001		Bushing, Door (wht)		Appelez-nous	-
71	10937305		Bucket-ref Dr		Appelez-nous	-
72	10310901		Tray, Butter		Appelez-nous	-
81	10580106		Shelf, Ref Door		Appelez-nous	-
91	10418506		Door, Dairy		Appelez-nous	-
94	M0310338		Plug Button Almond		Appelez-nous	-
104	10161804		Stop-l Door		Appelez-nous	-
913	12139302		Handle, Door (almond)		Appelez-nous	-
933	10810402		Trim, L Ctr Door		Appelez-nous	-
943	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
953	10810510		Trim, Bot Ref Dr L		Appelez-nous	-
963	10810310		Trim-l Top Ref Dr		Appelez-nous	-
1063	10852214		Retainer-ref Trim		Appelez-nous	-
1073	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
1543	10953113		Insert, Door Trim		Appelez-nous	-
1553	10953114		Insert, Trim (almond)		Appelez-nous	-
5103	10992102		Insert- L Nameplate		Appelez-nous	-
7993	10992002		Base, Nameplate		Appelez-nous	-
