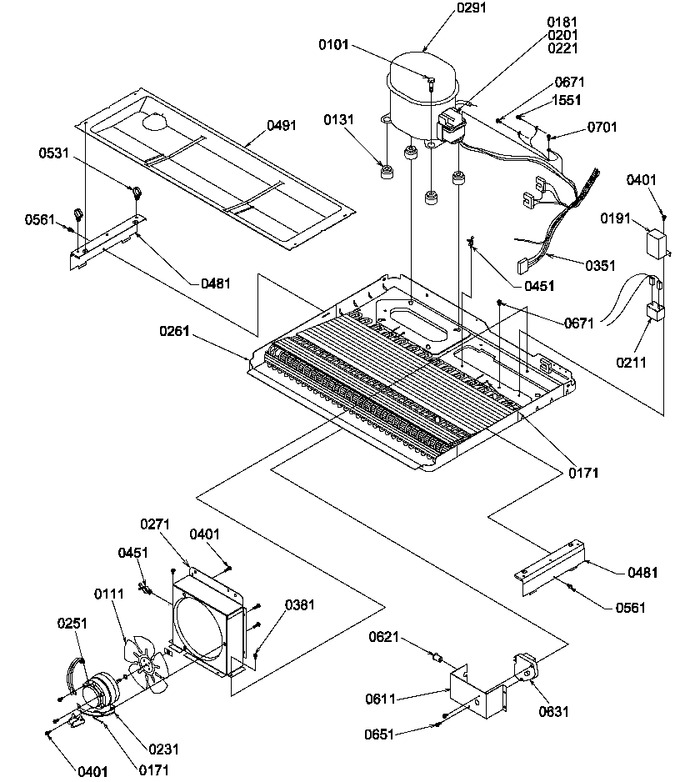

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	M0221523		Screw, Shldr		Appelez-nous	-
111	10518702		Blade, Fan		Appelez-nous	-
131	WPW10169124		Grommet, Compressor   (Replaces: 10835901)			Immediately	$ 7.55
171	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
181	10377015		Overload		Appelez-nous	-
191	10266402		Shield, Capacitor		Appelez-nous	-
201	WP10097202		Ptc Relay   (Replaces: 10097202)				$ 124.93
211	WP65889-4		Capacitor   (Replaces: C8931604)			Immediately	$ 61.14
221	10757301		Cover, Terminal		Appelez-nous	-
231	10496501		Kit,shroud/brkt Sound		Appelez-nous	-
251	833697		Motor, Fan   (Replaces: 10884501)			Immediately	$ 88.15
261	10580406		Cond/pan Ass`y(e Ct)		Appelez-nous	-
271	10602404		Kit,shroud/brkt Sound		Appelez-nous	-
291	W10309990		Compressor-tc Tp1380y   (Replaces: 12049723)			Immediately	$ 632.81
351	10947102		Harness, Mc		Appelez-nous	-
381	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
401	M0223803		Screw		Appelez-nous	-
451	M0585402		Tie Wire		Appelez-nous	-
481	10495702		Brkt, Drain Pan Mtg.		Appelez-nous	-
491	10507902		Pan, Drain		Appelez-nous	-
531	M0322202		Tie Wire		Appelez-nous	-
561	A4539601		Pop Rivet		Appelez-nous	-
611	10877004		Bracket, Timer		Appelez-nous	-
621	A3293505		Bushing-snap		Appelez-nous	-
631	R0131577		Timer, Defrost (8 Hr)   (Replaces: 10530702)			Immediately	$ 51.24
651	M0218118		Screw		Appelez-nous	-
671	WP489128		Screw   (Replaces: M0253516)				$ 11.40
701	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
1551	WP489399		Screw   (Replaces: M0232903)				$ 7.30
