SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts

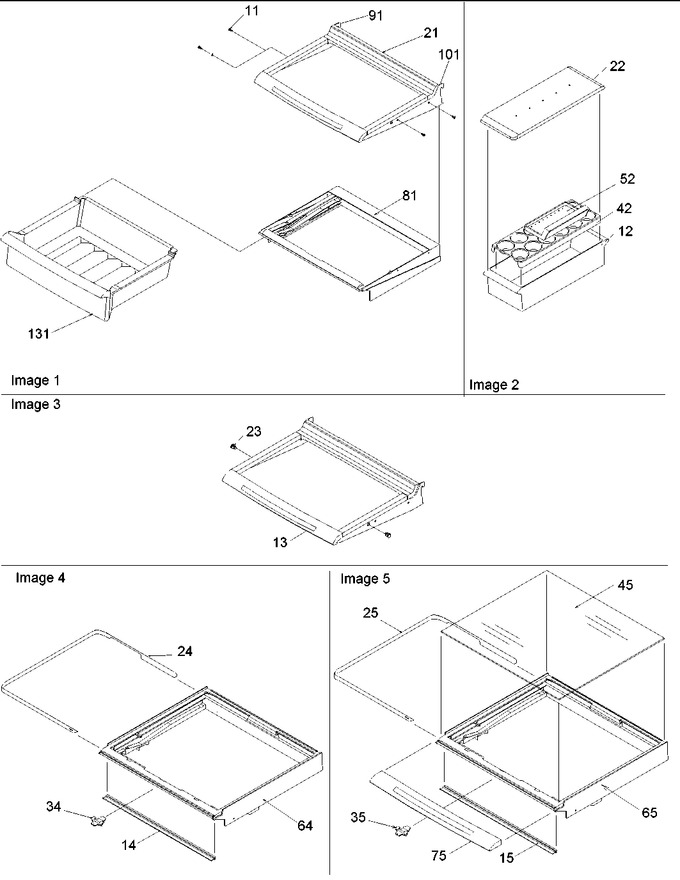

03 - Deli, Shelves & Crisper Assy


04 - Drain, Rollers & Evap Assy


05 - Evaporator Fan Shroud & Motor Assy


06 - Façade Dispenser Cover & Elec. Brkt Assy


07 - Freezer Door


08 - Freezer Shelves & Lights


09 - Ice Bucket Auger & Ice Maker Parts


10 - Ice Maker/control Assy


11 - Lights, Hinges & Shelving


12 - Machine Compartment


13 - Refrigerator Door, Trim & Handles


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	M0213129		Screw		Appelez-nous	-
12	10423129		Bin-utility		Appelez-nous	-
13	10809529		Shelf, Full Glide		Appelez-nous	-
14	10968801		Seal-crisp Front		Appelez-nous	-
15	10968801		Seal-crisp Front		Appelez-nous	-
21	10809532		Shelf, Full Deli		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
23	10875101		Stop, Shelf		Appelez-nous	-
24	10882701		Band, Crisper		Appelez-nous	-
25	10882702		Band-crisper		Appelez-nous	-
34	10852501		Slide, Crisper/deli		Appelez-nous	-
35	10852501		Slide, Crisper/deli		Appelez-nous	-
42	10436506		Tray, Egg				$ 8.28
45	Y10370065		Glass-shelf		Appelez-nous	-
52	10310901		Tray, Butter		Appelez-nous	-
64	10782901		Frame,crisper		Appelez-nous	-
65	10783001		Frame-crisper		Appelez-nous	-
75	12113003		Trim-crisper Fr		Appelez-nous	-
81	10783702		Frame, Deli		Appelez-nous	-
91	10809915		Rail, L Blank Side		Appelez-nous	-
101	10809916		Rail, R Blank Side		Appelez-nous	-
131	10784101		Pan,deli		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
