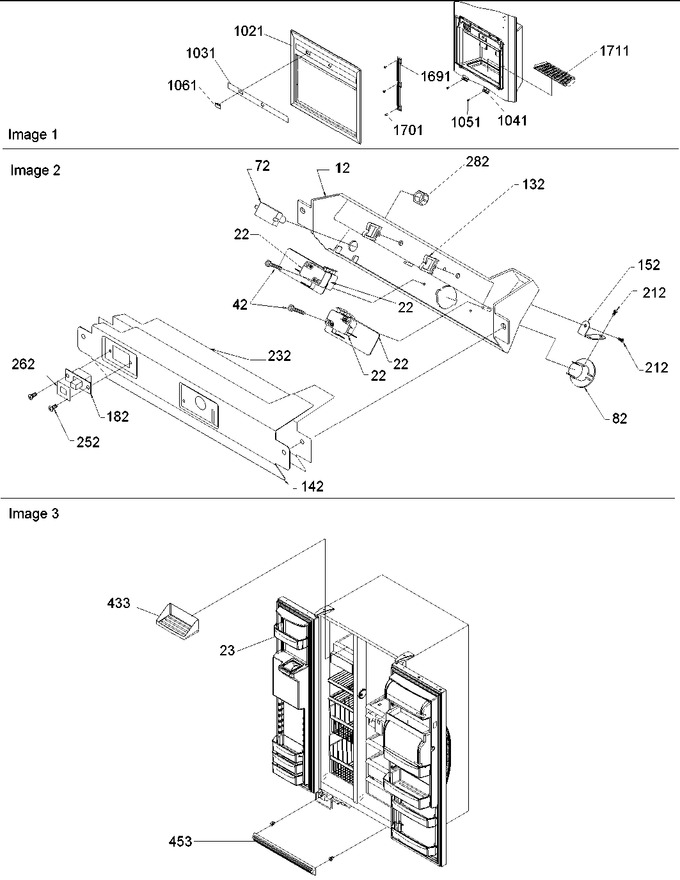

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 10323305 | Bracket, Elec Mtg |
|
- | |||||
| 22 | 12419601 | Switch, Limit |
|
- | |||||
| 23 | 12311803 | Shelf, Frz Door |
|
- | |||||
| 42 | M0237809 | Screw, T.f. |
|
- | |||||
| 72 | 10166101 | Switch-light Cavity |
|
$ 6.49 | |||||
| 82 | D7845102 | Socket, Lamp |
|
- | |||||
| 132 | B5667304 | Wire Clip |
|
- | |||||
| 142 | 10131809 | Cover, Electric Brkt |
|
- | |||||
| 152 | 10295701 | Bracket, Socket Mtg |
|
- | |||||
| 182 | 10492402 | Switch, Crushed/cube |
|
- | |||||
| 212 | M0230015 | Screw |
|
- | |||||
| 232 | 10419404 | Insulation,disp Control |
|
- | |||||
| 252 | W11084238 | Screw (Replaces: M0234001) |
|
- | |||||
| 262 | 10877104 | Cover-switch |
|
- | |||||
| 282 | 12501301 | Nut, Knurled |
|
- | |||||
| 433 | 10870802 | Shelf, Ice Cream |
|
- | |||||
| 453 | 12321806Q | Kit, Toe Grille (blk) |
|
- | |||||
| 1021 | 12023003 | Facade-e Disp |
|
- | |||||
| 1031 | 12025208 | Insert, Facade (black) |
|
- | |||||
| 1041 | C8973902 | Clip-facade Mtg |
|
- | |||||
| 1051 | M0216517 | Screw |
|
- | |||||
| 1061 | 12036402 | Cap-switch Bk |
|
- | |||||
| 1691 | 12335602 | Extension, Cavity |
|
- | |||||
| 1701 | M0216517 | Screw |
|
- | |||||
| 1711 | D7750602 | Grille Sump (black) |
|
- |
