SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves & Crisper Assy


04 - Drain, Rollers & Evap Assy


05 - Evaporator Fan Shroud & Motor Assy


06 - Façade Dispenser Cover & Elec. Brkt Assy


07 - Freezer Door


08 - Freezer Shelves & Lights


09 - Ice Bucket Auger & Ice Maker Parts


10 - Ice Maker/control Assy


11 - Lights, Hinges & Shelving

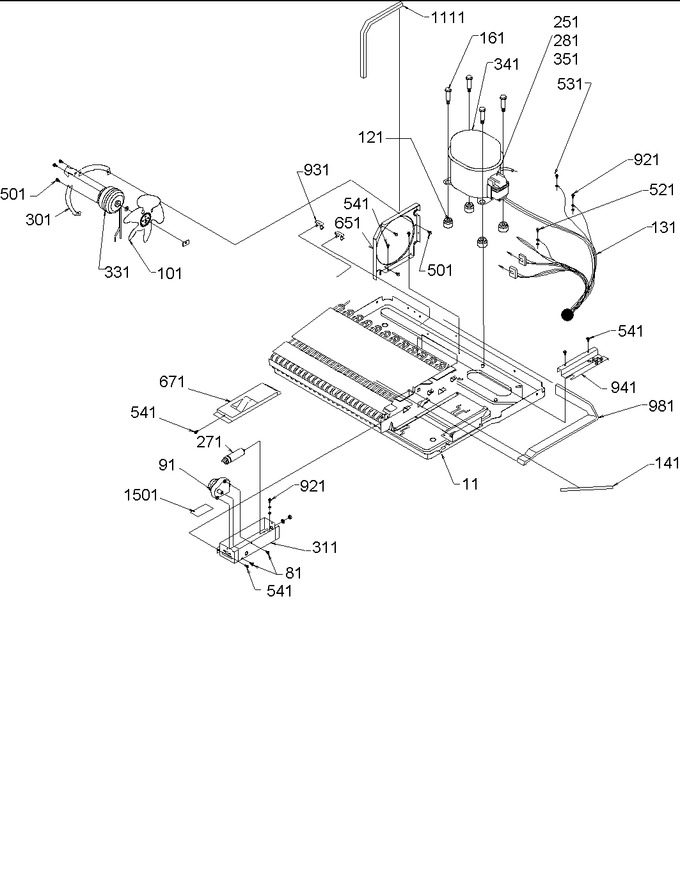

12 - Machine Compartment


13 - Refrigerator Door, Trim & Handles


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10883408		Assy, Cond/pan E-ct		Appelez-nous	-
81	M0216705		Screw				$ 5.81
91	10129307		Kit, Defrost Timer (230 Vac)		Appelez-nous	-
101	10518703		Blade-fan		Appelez-nous	-
121	WPW10169124		Grommet, Compressor   (Replaces: 10835901)				$ 7.55
131	10959105		Harness, Mc		Appelez-nous	-
141	B5759645		Gasket, Sealing		Appelez-nous	-
161	M0221523		Screw, Shldr		Appelez-nous	-
251	10377019		Overload- 4tm		Appelez-nous	-
271	10958303		Capacitor		Appelez-nous	-
281	10757301		Cover, Terminal		Appelez-nous	-
301	C8982102		Brkt,cond. Mtr		Appelez-nous	-
311	10277024		H V Box-e Ct		Appelez-nous	-
331	D7846903		Motor-condenser (230 Vac,50/60		Appelez-nous	-
341	W10309997		Compressor Tc Tpa1410y   (Replaces: 12049713)				$ 583.93
351	10097206		Relay		Appelez-nous	-
501	M0223816		Screw, Tr				$ 5.27
521	M0253916		Screw		Appelez-nous	-
531	WP489128		Screw   (Replaces: M0253516)				$ 11.40
541	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
651	10845505		Cond. Fn Shrd		Appelez-nous	-
671	10276908		Top, H.v. Box (e-ct)		Appelez-nous	-
921	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
931	10874601		Clip-cond.		Appelez-nous	-
941	10845302		H.v. Box Shelf-e Ct		Appelez-nous	-
981	A3189367		Gasket-foam		Appelez-nous	-
1111	A3030359		Gasket		Appelez-nous	-
1501	A3189364		Gasket, Foam		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
