Diagram # Part Number Description Series Availability Ships Price Add to Cart
21 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

41 WP12059901 Fan-evap/5.250 Blade   (Replaces: 12059901) Special Order $ 19.67

51 10656102 Brkt-mtr Mt/up Appelez-nous -
61 WP10513804 Motor-evap Fanr0161090c, 50hz)   (Replaces: 10513805) Special Order $ 256.76

71 10909401 Brkt, Mtr Mt Appelez-nous -
81 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

1221 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

1231 B8386608 Gasket Appelez-nous -
1271 B8386607 Gasket (1=1ft.) Appelez-nous -
1301 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

1401 10890202 Evap Fan Shroud Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

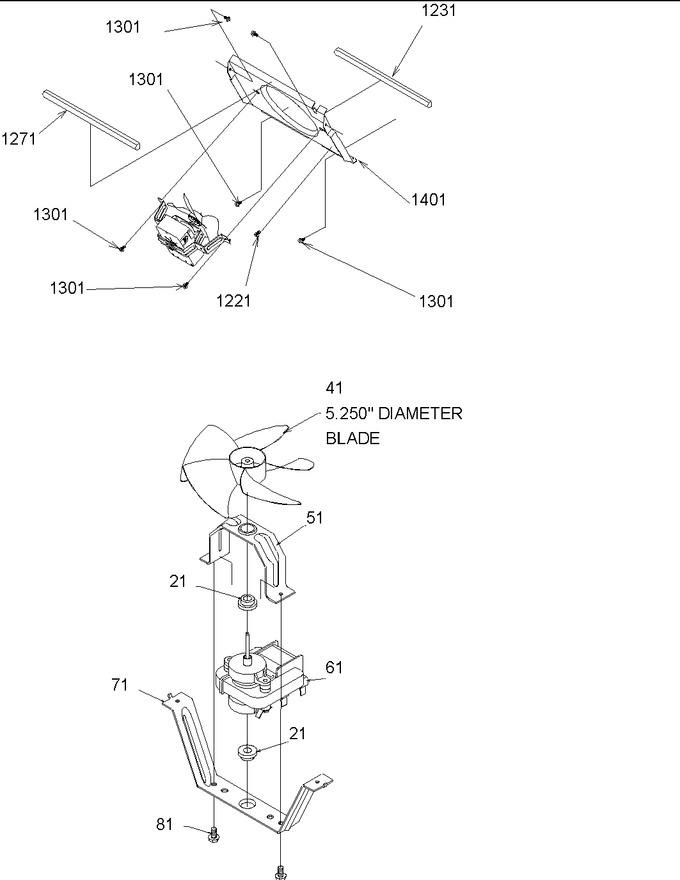

Diagram for SSD522VS (BOM: P1320307W S)
