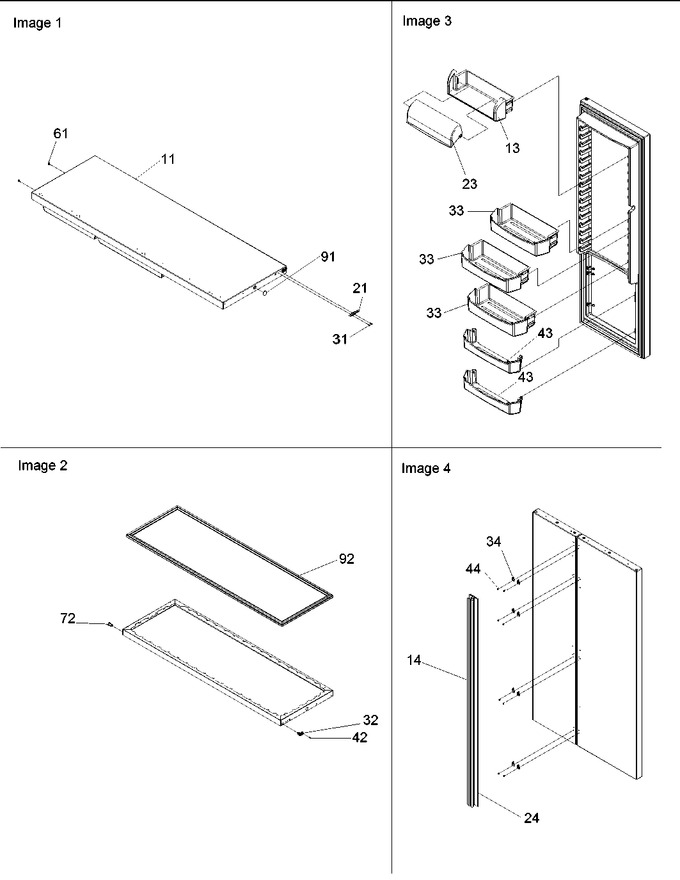

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 12309705SQ | Assy,ref Dr Foam(stainless Ste |
|
- | |||||
| 13 | 12308603 | Frame, Dairy |
|
$ 26.46 | |||||
| 14 | 12438908 | Handle,fz Dr(stn Stl) |
|
- | |||||
| 21 | C8972407 | Stop, Door (blk) |
|
- | |||||
| 23 | 12308701 | Door, Dairy |
|
- | |||||
| 24 | 12438904 | Handle,ref Dr(stn Stl) |
|
- | |||||
| 31 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 32 | R0181181 | Closure, Door (blk) (Replaces: 12113204) |
|
Immediately | $ 7.55 | ||||
| 33 | 12309509 | Bucket, Ref Door |
|
- | |||||
| 34 | 12315101 | Clip |
|
- | |||||
| 42 | WP8281227 | Screw, Tc (Replaces: M0220432) |
|
$ 10.96 | |||||
| 43 | 12311205 | Shelf, Ref Door |
|
- | |||||
| 44 | WP489399 | Screw, Se (Replaces: M0232929) |
|
$ 7.30 | |||||
| 61 | M0311607 | Plug, Button (gry) |
|
- | |||||
| 72 | 10961002 | Bushing, Door (blk) |
|
- | |||||
| 91 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 92 | R9800048 | Assy,ref Dr Gasket(black) |
|
- | |||||
| NI | 12310201 | Retainer, Ref Bucket |
|
- |
