Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 A1061701 Washer Appelez-nous -
2 B8385101 Nut-helix Appelez-nous -
3 C8964101 Bar, Breaker Appelez-nous -
4 C8975322 Insert Bucket Fz Appelez-nous -
5 WPD7749401 Cap, Helix End   (Replaces: D7749401) Special Order $ 29.01

6 D7749501 Helix Appelez-nous -
7 D7749601 Wheel Lift Appelez-nous -
8 D7749707 Bucket, Ice V Appelez-nous -
9 D7749802 Front, Bucket Appelez-nous -
10 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

11 67005375 Glide-l Fz   (Replaces: D7849903) Special Order $ 312.82

12 D7849904 Glide, Freezer Rh Appelez-nous -
13 M0243529 Screw, Glides Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

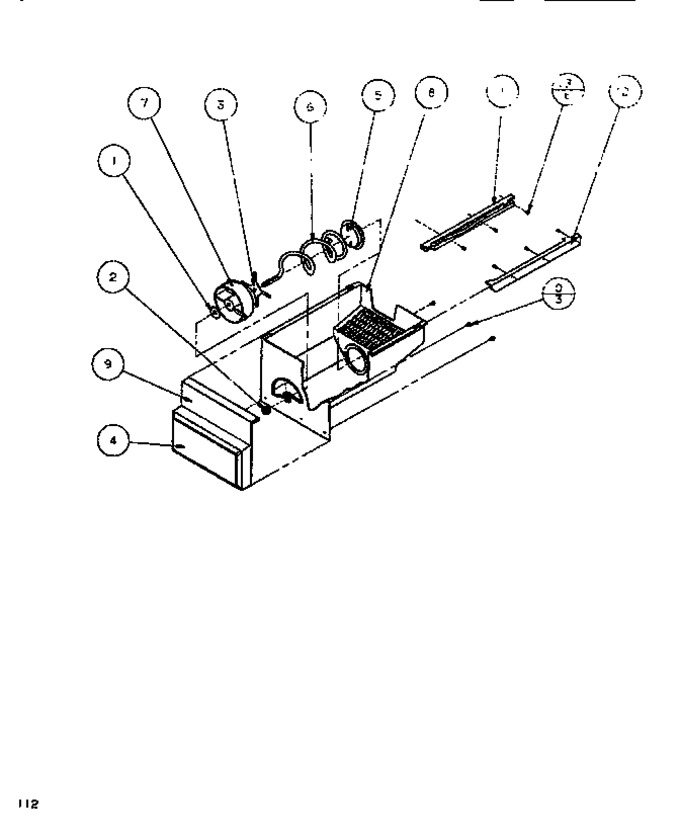

Diagram for SXDE526K (BOM: P1109901W)
