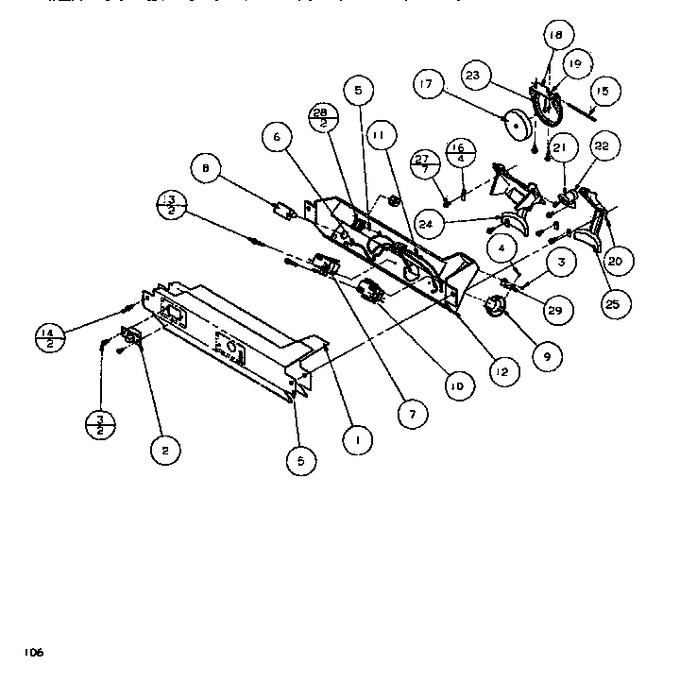

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10419402		Insulation, Dispenser Control		Appelez-nous	-
2	10492402		Switch, Crushed/cube		Appelez-nous	-
3	M0234003		Screw		Appelez-nous	-
4	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
5	10131805		Cover, Elec. Brkt		Appelez-nous	-
6	D7383456		Wire Jumper		Appelez-nous	-
7	C8972704		Switch , Light		Appelez-nous	-
8	C8988902		Switch, Cavity Light		Appelez-nous	-
9	D7845102		Socket, Lamp		Appelez-nous	-
10	C8972703		Switch		Appelez-nous	-
11	D7383452		Wire, Jumper		Appelez-nous	-
12	10323303		Bracket, Elec Mtg		Appelez-nous	-
13	M0237810		Screw, T.f.		Appelez-nous	-
14	M0216517		Screw		Appelez-nous	-
15	A1061501		Pin, Chute Door		Appelez-nous	-
16	A1061601		Retainer, Ice Arm		Appelez-nous	-
17	B8380701		Insulation, Chute Door		Appelez-nous	-
18	B8380801		Brkt-chute Door		Appelez-nous	-
19	B8380901		Spring,chute Door				$ 7.18
20	B8385401		Spring, Return		Appelez-nous	-
21	C8972501		Retainer Door Delay		Appelez-nous	-
22	C8973601		Delay, Door		Appelez-nous	-
23	10246601		Kit,chute Dr No.3		Appelez-nous	-
24	D7750305		Arm -w Ice Actuator		Appelez-nous	-
24	D7750306		Arm, Ice Actr. L		Appelez-nous	-
25	10164904		Arm Water Actr. Almond		Appelez-nous	-
25	10164903		Arm Water Actr. White		Appelez-nous	-
27	M0211116		Screw, Sm		Appelez-nous	-
28	B5667304		Wire Clip		Appelez-nous	-
29	10295701		Bracket, Socket Mtg		Appelez-nous	-
NI	R0156692		Kit,chute Dr No.3		Appelez-nous	-
