SELECT A DIAGRAM

01 - Cabinet Back


02 - Controls & Cabinet (ref/frz)


03 - Crushed Ice Bucket


04 - Crushed Ice Bucket (cont.)


05 - Door/hinge/trim Fz


06 - Door/hinge/trim Ref


07 - Drain & Rollers


08 - Evap & Air Handling


09 - Fz Door


10 - Fz Shelving & Ref Light


11 - Ice & Water Cavity


12 - Ice & Water Cavity (cont.)

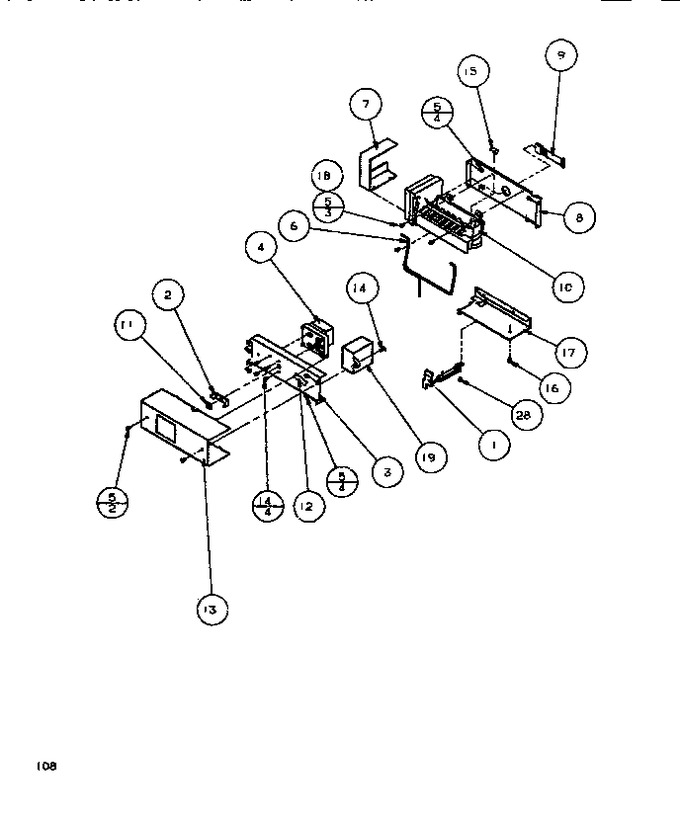

13 - Icemaker


14 - Ref Door


15 - Ref Door (cont.)


16 - Shelving & Drawers (ref)


17 - Tecumseh Compressor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8980402		I.m. Shut Off Assy		Appelez-nous	-
2	10114901		Driver (ice Maker)				$ 1.61
3	D7749205		Support,auger Motor		Appelez-nous	-
4	D7847001		Motor - Auger		Appelez-nous	-
5	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
6	D7877001		Arm,ice Maker Shut Off		Appelez-nous	-
7	D7820401		Cover Im		Appelez-nous	-
8	D7821003		Support-im		Appelez-nous	-
9	D7843601		Harness, Im		Appelez-nous	-
10	WPW10190972		Ice Maker, (220 V 50 Hz)   (Replaces: D7846302)				$ 177.49
11	M0120501		Nut		Appelez-nous	-
12	A3030305		Gasket-per Ft		Appelez-nous	-
13	D7788811		Cover,auger Mtr-e Ct		Appelez-nous	-
14	WPW10139210		Screw, Tc   (Replaces: M0226528)				$ 8.03
15	B5720301		Clip		Appelez-nous	-
16	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
17	D7846201		Shield Im		Appelez-nous	-
18	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
NI	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30

    View Diagram in Separate Window       Print Part List
