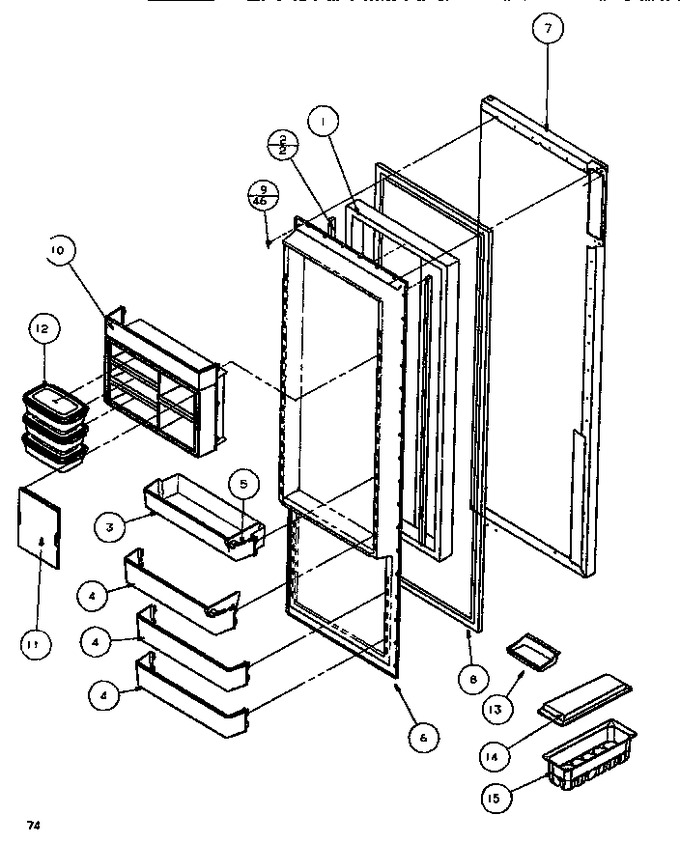

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B0523562		Insul. By The Ft.		Appelez-nous	-
2	C8987104		Seal, Door Dike		Appelez-nous	-
3	D7783313		Bucket Ref Door		Appelez-nous	-
4	67003697		Shelf, Ref Door   (Replaces: D7783413)				$ 82.08
5	D7814609		Snugger Door		Appelez-nous	-
6	D7828703		Xinner Door Liner Ref		Appelez-nous	-
7	10300302LQ		Ref Dr Fomd As Cfc 11		Appelez-nous	-
7	10300302WQ		Ref Dr Fomd Cfc 11		Appelez-nous	-
8	10359701		Gasket, Door (w Ref)		Appelez-nous	-
9	M0219730		Screw				$ 7.65
10	D7781202		Module-dairy		Appelez-nous	-
11	D7781312		Door Dairy		Appelez-nous	-
12	D7806405		Container Sec. Ser.		Appelez-nous	-
13	10310901		Tray, Butter		Appelez-nous	-
14	D7805907		Cover-bucket		Appelez-nous	-
15	D7695621		Egg Bucket		Appelez-nous	-
