Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7616648 Trim Fz Shelf Appelez-nous -
2 D7781418 Basket Freezer Clear Appelez-nous -
3 D7781504 Freezer Shelf Appelez-nous -
4 D7788314 Shelf Fz Wire Appelez-nous -
5 D7788315 Shelf, Frz Wire Appelez-nous -
6 C8913546 Trim Front Appelez-nous -
7 C8913609 Trim Appelez-nous -
8 C8973801 Support, Frz Shelf Special Order $ 8.35

9 D7845102 Socket, Lamp Appelez-nous -
10 D7845204 Plate - Lt Socket Appelez-nous -
11 D7786602 Shield, Light Appelez-nous -
12 C8983804 Switch, Mc Light Appelez-nous -
13 C8983803 Switch-fan Appelez-nous -
14 D7749002 Cover Light Appelez-nous -
15 M0360402 Light Bulb (230/240 Vac) Appelez-nous -
16 WP12990527 Screw   (Replaces: M0219916) In-Stock Immediately $ 8.76

17 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

19 67005375 Glide-l Fz   (Replaces: D7849903) Special Order $ 312.82

20 D7849904 Glide, Freezer Rh Appelez-nous -
21 M0213529 Screw Appelez-nous -
22 C8973701 Plug, Frz Shelf Support Appelez-nous -
23 M0580007 Grommet, Screw Appelez-nous -
24 10295302 Harness Fz Liner Appelez-nous -
25 D7845101 Socket, Lamp Appelez-nous -
26 67006425 Screw, Sm   (Replaces: M0211019) In-Stock Immediately $ 7.30

27 10014708 Shield, Light Appelez-nous -
28 D7297603 Cover, Light Sw Appelez-nous -
29 D7716406 Housing-ref Light Appelez-nous -
31 D7839701 Rack, Juice V Appelez-nous -
32 C8986116 Insert Juice Rack Appelez-nous -
34 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

35 10250002 Cover, Wire Appelez-nous -
36 M0217225 Screw Appelez-nous -
37 A4554813 Snap Bushing Appelez-nous -
38 D7844902 Socket Cover Appelez-nous -
39 A4539626 Pop Rivet Appelez-nous -
40 M0320905 Terminal Ground A Appelez-nous -
41 M0217225 Screw Appelez-nous -
42 M0360402 Light Bulb (230/240 Vac) Appelez-nous -
43 D7845102 Socket, Lamp Appelez-nous -
44 Y10270101 Cover-light Appelez-nous -
45 M0320905 Terminal Ground A Appelez-nous -
46 M0217225 Screw Appelez-nous -
47 D7844803 Socket Shield Appelez-nous -
48 A4554813 Snap Bushing Appelez-nous -
50 A4539626 Pop Rivet Appelez-nous -
51 Y10244001 Harness, Ref Light Appelez-nous -
52 10270202 Housing Light Appelez-nous -
53 A3189337 Gasket Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

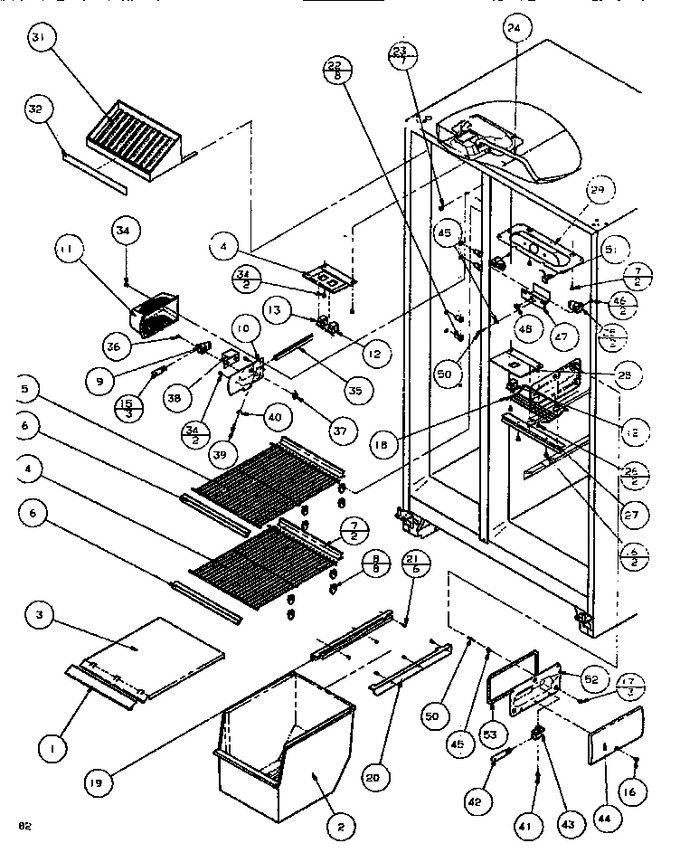

Diagram for SXDE526K (BOM: P1109901W)
