SELECT A DIAGRAM

01 - Compressor Compartment


02 - Functional (ref/frz)


03 - Functional (ref/frz)


04 - Fz Door


05 - Interior Accessories


06 - Rear Components


07 - Ref Door

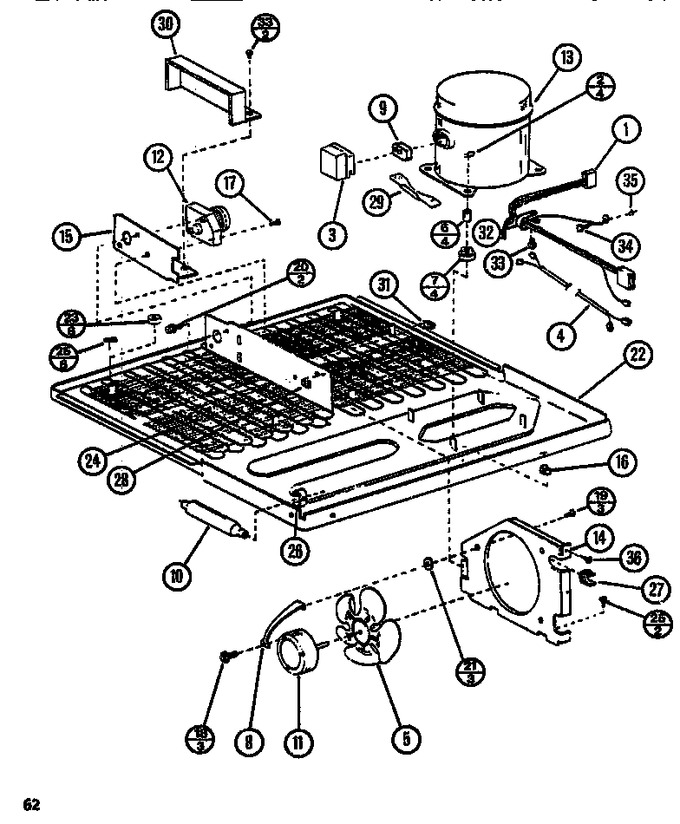

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7655002		Harness Mc Comp		Appelez-nous	-
2	A3140801		Clip K		Appelez-nous	-
3	C8867701		Term Cover K		Appelez-nous	-
4	C8933001		Cable Comp		Appelez-nous	-
5	B5742601		Blade, Fan		Appelez-nous	-
6	A3072001		Sleeve K		Appelez-nous	-
7	WPW10169124		Grommet   (Replaces: B8333401)				$ 7.55
8	C8982101		Bracket, Cond Motor		Appelez-nous	-
9	B8364301		Ptc Device		Appelez-nous	-
10	WPB2150504		Drier   (Replaces: B5715001)				$ 136.98
11	D7656601		Motor, Condenser		Appelez-nous	-
12	D7004113		Timer Defrost		Appelez-nous	-
13	D7653601		Compressor		Appelez-nous	-
14	D7691002		Cond. Fan Shrd		Appelez-nous	-
15	D7752701		Bracket, Timer		Appelez-nous	-
16	M0110508		Clip		Appelez-nous	-
17	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
18	M0223803		Screw		Appelez-nous	-
19	M0221332		Screw, Shoulder		Appelez-nous	-
20	M0218118		Screw		Appelez-nous	-
21	M0500107		Grommet K		Appelez-nous	-
22	D7595411		Base Pan - Ptd		Appelez-nous	-
23	B8346301		Spacer Cond.		Appelez-nous	-
24	D7654301		Condenser Pntd		Appelez-nous	-
25	M0293703		Speednut		Appelez-nous	-
26	M0104002		Clamp-drier		Appelez-nous	-
27	B5759604		Gasket		Appelez-nous	-
28	A9008301		Felt		Appelez-nous	-
29	C8962201		Bracket, Washer		Appelez-nous	-
30	C8964701		Cover, Timer		Appelez-nous	-
31	M0104102		Clip, Cord				$ 8.10
32	M0105509		Clamp		Appelez-nous	-
33	WP489464		Screw   (Replaces: M0211217)			Immediately	$ 8.38
34	M0251017		Screw		Appelez-nous	-
35	M0272803		Lock Washer		Appelez-nous	-
36	WP489069		Screw-sd   (Replaces: M0233704)			Immediately	$ 8.40

    View Diagram in Separate Window       Print Part List
