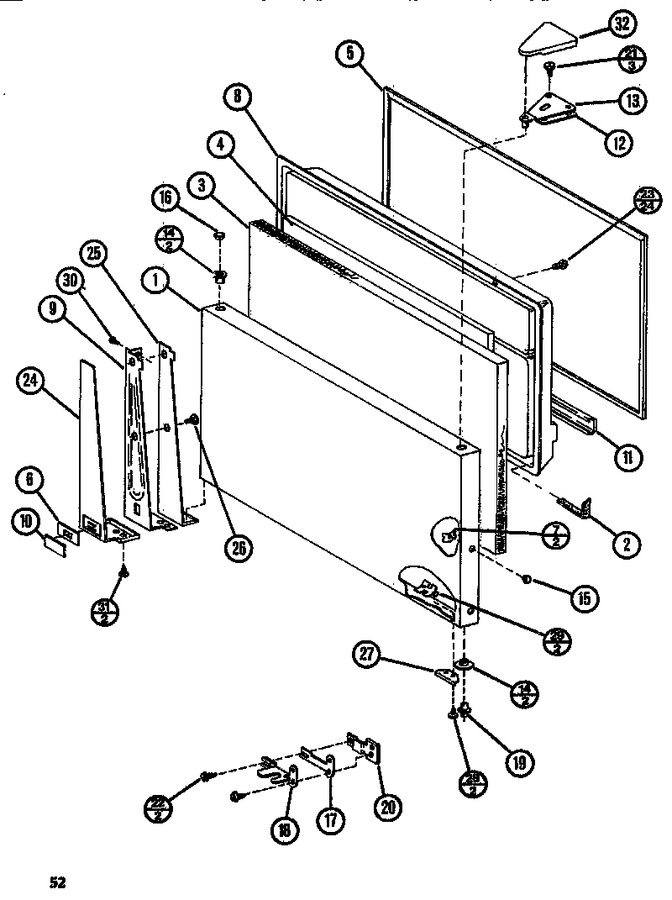

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7745208		Upper Door Pan, Gold		Appelez-nous	-
1	D7745209		Door Fz L		Appelez-nous	-
1	D7745207		Upper Door Pan, White		Appelez-nous	-
2	B0523563		Insulation Ft. K		Appelez-nous	-
3	B5683512		Insulation		Appelez-nous	-
4	B5683514		Insulation		Appelez-nous	-
5	D7605106		Gasket		Appelez-nous	-
6	C8962701		Pad Nameplate		Appelez-nous	-
7	B8361401		Nut		Appelez-nous	-
8	D7583907		Inner Door Panel-frz		Appelez-nous	-
9	D7744813		Handle Door		Appelez-nous	-
9	D7744811		Door Handle		Appelez-nous	-
10	C8962613		Nameplate		Appelez-nous	-
11	C8907230		Retainer, Package		Appelez-nous	-
12	B8389001		Shim, Top Hinge		Appelez-nous	-
12	B8389002		Shim Top Hinge		Appelez-nous	-
12	B8389003		Shim, Top Hinge, .016		Appelez-nous	-
13	B5744301		Hinge		Appelez-nous	-
14	C3652901		Bushing, Hinge Pin		Appelez-nous	-
15	M0311303		Plug Button		Appelez-nous	-
15	M0311301		Plug Button		Appelez-nous	-
15	M0311302		Plug Button		Appelez-nous	-
16	M0310608		Plug		Appelez-nous	-
16	M0310601		Plug		Appelez-nous	-
16	M0310606		Plug		Appelez-nous	-
17	B8351402		Shim K		Appelez-nous	-
17	B8351403		Shim, Center Hinge		Appelez-nous	-
17	B8351401		Shim K		Appelez-nous	-
18	C8948601		Center Hinge Bracket		Appelez-nous	-
19	B8373101		Center Pin Hinge		Appelez-nous	-
20	C8925501		Kit, Tap Plate & Screw		Appelez-nous	-
21	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
22	M0226831		Screw		Appelez-nous	-
23	M0219717		Screw		Appelez-nous	-
24	D7744905		Pad-outer Handle		Appelez-nous	-
24	D7744913		Pad-outer Handle		Appelez-nous	-
24	D7744909		Pad		Appelez-nous	-
25	D7745007		Handle Pad Inner W		Appelez-nous	-
25	D7745003		Pad Handle		Appelez-nous	-
25	D7745011		Handle Pad Inner L K		Appelez-nous	-
26	M0215115		Screw		Appelez-nous	-
27	C8894804		Stop Door		Appelez-nous	-
28	M0203458		Screw		Appelez-nous	-
29	B8363501		Nut		Appelez-nous	-
30	M0203931		Screw, Tf		Appelez-nous	-
31	WPW10348409		Screw   (Replaces: M0222416)			Immediately	$ 8.20
32	D7872104		Cover Hinge		Appelez-nous	-
32	D7872103		Cover Hinge L		Appelez-nous	-
32	D7872105		Cover Hinge L		Appelez-nous	-
