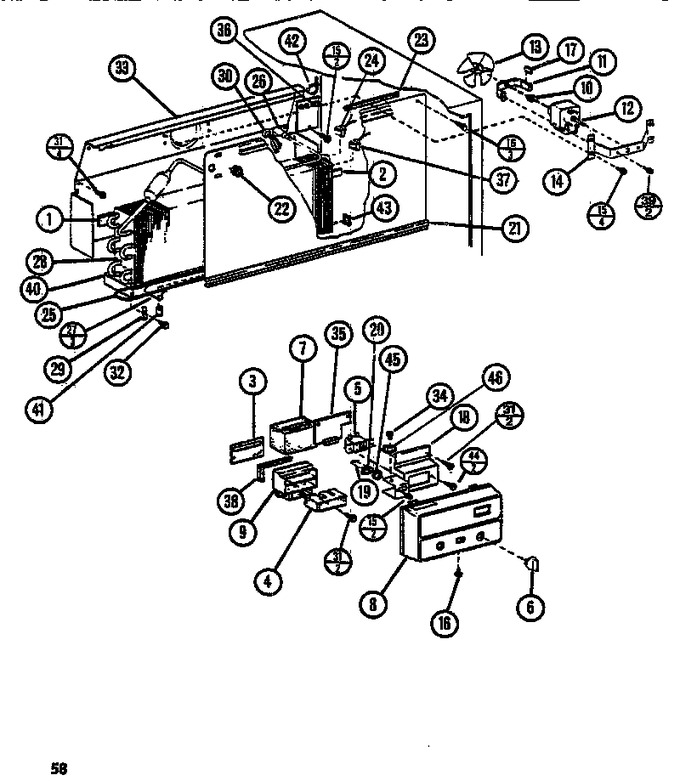

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B8322902 | Block Evap. Coil |
|
- | |||||
| 2 | B8361702 | Block Evap Coil |
|
- | |||||
| 3 | B8345401 | Gasket, Damper |
|
- | |||||
| 4 | C8902601 | Insert, Control |
|
- | |||||
| 5 | D7656101 | Control, Frz. Temp |
|
- | |||||
| 6 | D7661902 | Knob-control |
|
- | |||||
| 7 | D7543201 | Insulation Damper |
|
- | |||||
| 8 | D7545021 | Cover-control |
|
- | |||||
| 9 | D7656201 | Assy, Damper-control |
|
- | |||||
| 10 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 46.17 | ||||
| 11 | C8881301 | Brkt Evap Fan |
|
- | |||||
| 12 | WP10513804 | Motor, Evap. (Replaces: C8891602) |
|
$ 256.76 | |||||
| 13 | C8927801 | Blade, Evap Fan |
|
- | |||||
| 14 | D7524501 | Brkt Evap Fan Shroud |
|
- | |||||
| 15 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 16 | 67006425 | Screw, Sm (Replaces: M0209616) |
|
Immediately | $ 7.30 | ||||
| 17 | A1047901 | Shim |
|
- | |||||
| 18 | D7713802 | Bracket, Control |
|
- | |||||
| 19 | M0305301 | Diode |
|
- | |||||
| 20 | M0381902 | Switch, Heater |
|
- | |||||
| 21 | D7874501 | Evap Cover |
|
- | |||||
| 22 | A3138301 | Grommet |
|
- | |||||
| 23 | A3189320 | Gasket, Foam |
|
- | |||||
| 24 | C8898604 | Thermostat, Defrost |
|
- | |||||
| 25 | D7549704 | Heater Evap |
|
- | |||||
| 26 | D7759002 | Assy, Heat Exch. |
|
- | |||||
| 27 | C8952001 | Clip |
|
- | |||||
| 28 | R0170032 | Evaporator Assembly |
|
- | |||||
| 29 | A3253803 | Clamp |
|
- | |||||
| 30 | D7699401 | Harness, Liner |
|
- | |||||
| 31 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 32 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 33 | D7691106 | Shroud Fan |
|
- | |||||
| 34 | M0251017 | Screw |
|
- | |||||
| 35 | C8948102 | Shield, Temp. Cont. |
|
- | |||||
| 36 | C8947901 | Board-term |
|
- | |||||
| 37 | C8898605 | Kit, Defrost Thermostat |
|
- | |||||
| 38 | A3263906 | Gasket-per Ft |
|
- | |||||
| 39 | WP12990527 | Screw (Replaces: M0219916) |
|
Immediately | $ 8.76 | ||||
| 40 | 10067701 | Tray, Drip Evap |
|
- | |||||
| 41 | 10067801 | Tube Drip Tray |
|
- | |||||
| 42 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 43 | B8358502 | Gasket |
|
- | |||||
| 44 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 8.25 | ||||
| 45 | M0234003 | Screw |
|
- | |||||
| 46 | M0272803 | Lock Washer |
|
- |
