01 - Compressor Compartment


02 - Functional (ref/frz)


03 - Functional (ref/frz)


04 - Fz Door


05 - Interior Accessories


06 - Rear Components


07 - Ref Door

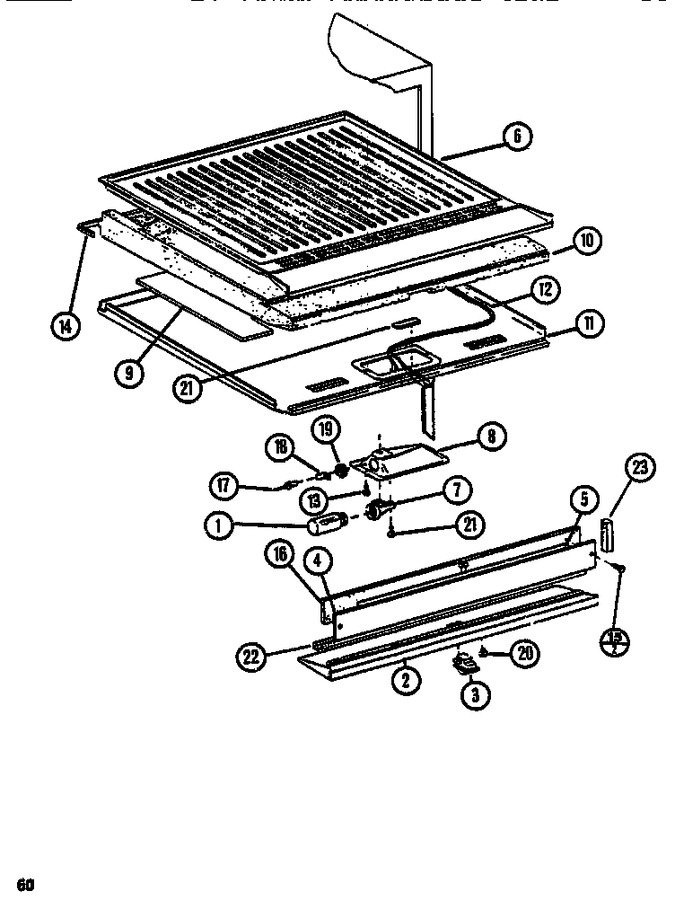

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11618980		Lamp 40 Watt   (Replaces: B8363301)				$ 22.42
2	D7653004		Breaker-top		Appelez-nous	-
3	C8929703		Light Switch K		Appelez-nous	-
4	C8842509		Center Mullion		Appelez-nous	-
4	C8842506		Center Mullion		Appelez-nous	-
4	C8842510		Center Mullion		Appelez-nous	-
5	D7654502		Heater Mullion		Appelez-nous	-
6	D7714705		Bottom Freezer		Appelez-nous	-
7	D7845101		Socket, Lamp		Appelez-nous	-
8	D7861801		Housing Light		Appelez-nous	-
9	C8887901		Insulation		Appelez-nous	-
10	D7816905		Drain Block Kit		Appelez-nous	-
11	D7539306		Top Ref.		Appelez-nous	-
12	D7882201		Harness, Mullion		Appelez-nous	-
13	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
14	B5759626		Gasket, Sealing		Appelez-nous	-
15	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
16	876370		Insulation, Batt   (Replaces: B0523561)				$ 243.14
17	WP210720		Pop Rivets   (Replaces: A4539605)				$ 14.16
18	M0320905		Terminal Ground A		Appelez-nous	-
19	M0272803		Lock Washer		Appelez-nous	-
20	M0210217		Screw, No.8-18 X 3/8 P Trs Hd Lp		Appelez-nous	-
21	M0217225		Screw		Appelez-nous	-
22	B5759622		Gasket, Foam		Appelez-nous	-
23	876370		Insulation, Batt   (Replaces: B0523561)				$ 243.14
NI	A0092404		Pad-protective		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
