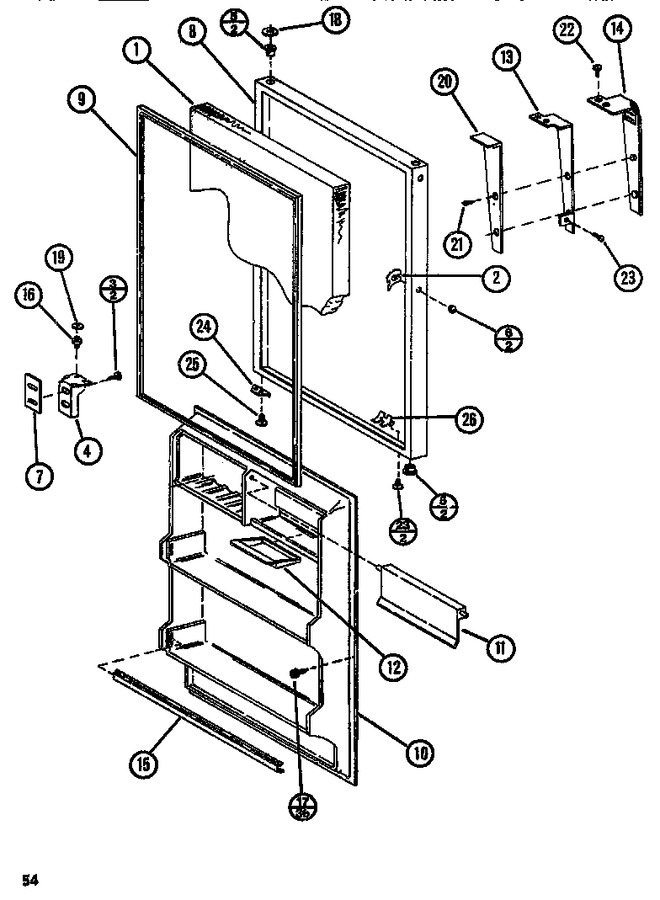

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B5683511		Insulation		Appelez-nous	-
2	B8361401		Nut		Appelez-nous	-
3	M0246258		Screw		Appelez-nous	-
4	C8814803		Bracket Lower Hinge		Appelez-nous	-
5	C8852202		Bearing, Hinge		Appelez-nous	-
5	C3652901		Bushing, Hinge Pin		Appelez-nous	-
6	M0311303		Plug Button		Appelez-nous	-
6	M0311301		Plug Button		Appelez-nous	-
6	M0311302		Plug Button		Appelez-nous	-
7	B5744801		Kit,btm Hinge Shim		Appelez-nous	-
7	B5744803		Shim		Appelez-nous	-
7	B5744804		Shim, Bottom Hinge		Appelez-nous	-
7	B5744802		Shim		Appelez-nous	-
8	D7731736		Dr Ref L-t-tm516k1		Appelez-nous	-
8	D7731735		Dr Ref G-t-tm516k1		Appelez-nous	-
8	D7731734		Lower Door Pan, Ref, White		Appelez-nous	-
9	D7605112		Gasket, Door		Appelez-nous	-
10	D7652403		Inner Dr Panel Ref W		Appelez-nous	-
11	D7604420		Door Dairy		Appelez-nous	-
12	D3799802		Butter Tray		Appelez-nous	-
13	D7744814		Handle Door		Appelez-nous	-
13	D7744812		Door Handle		Appelez-nous	-
14	D7744914		Outer Handle Pad		Appelez-nous	-
14	D7744910		Pad W Outer Handle		Appelez-nous	-
14	D7744906		Pad-outer Handle		Appelez-nous	-
15	C8907229		Retainer, Pkg		Appelez-nous	-
16	C8814901		Pin, Hinge K		Appelez-nous	-
17	M0219717		Screw		Appelez-nous	-
18	M0274049		Washer		Appelez-nous	-
19	M0274050		Washer		Appelez-nous	-
20	D7745012		Handle Pad Inner L		Appelez-nous	-
20	D7745008		Handle Pad Inner		Appelez-nous	-
20	D7745004		Pad Handle		Appelez-nous	-
21	M0215115		Screw		Appelez-nous	-
22	WPW10348409		Screw   (Replaces: M0222416)			Immediately	$ 8.20
23	M0203931		Screw, Tf		Appelez-nous	-
24	C8894804		Stop Door		Appelez-nous	-
25	M0203458		Screw		Appelez-nous	-
26	B8363501		Nut		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
