Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP112432 Nut, (3)   (Replaces: 112432) Special Order $ 8.63

2 WP488627 Screw, 8a X 1/2 (6)   (Replaces: 338156) Special Order $ 8.11

2 258111 Lower L.h. Appelez-nous -
2 WP681414 Screw, 10-32 Hex (4)   (Replaces: 343631) In-Stock Immediately $ 8.47

2 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 8.47

2 258110 Wrapper, Side (2) Appelez-nous -
2 255383 Lower R.h. Appelez-nous -
4 258077 Terminal, 1/4 Appelez-nous -
4 WP8203546 Block, Terminal   (Replaces: 258076) In-Stock Immediately $ 30.13

5 258094 Rivet, Plastic (2) Appelez-nous -
6 257976 (lower) Appelez-nous -
6 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 8.47

6 257974 Cover, Rear Appelez-nous -
9 258112 Plug Button (2) Appelez-nous -
10 254230 Screw, 10a X 1/2 (4) Appelez-nous -
10 257807 Plate, Hinge (2) Appelez-nous -
10 258857 Screw, 10-32 X 1/2 (4) Appelez-nous -
12 257314 Plug, Button (1) (rotisserie) Appelez-nous -
15 98005642 Clip, Oven Thermostat (2)   (Replaces: 258139) In-Stock Immediately $ 87.08

24 254230 Screw, 10a X 1/2 Appelez-nous -
24 WP486754 Screw, 6-32 X 1/4   (Replaces: 246119) Special Order $ 8.01

24 308231 Frame, Front Appelez-nous -
26 308228 Baffle, Bottom Appelez-nous -
26 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

27 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

27 308404 Baffle, Fan Appelez-nous -
28 308390 Mount, Fan Motor Appelez-nous -
28 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

29 307565 Motor, Fan Appelez-nous -
29 307602 Nut, 6-32 Appelez-nous -
30 307535 Blade, Fan Appelez-nous -
31 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

31 308994 Support, Angle (2) Appelez-nous -
32 307748 Screw, 10a X 1/2 Appelez-nous -
32 327760 Vent, Hood (30``) Appelez-nous -
33 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

33 258743 Vent (lower) Appelez-nous -
34 257052 Plate, Cover Appelez-nous -
34 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

35 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

35 255135 Baffle, Top Insulation Appelez-nous -
35 246127 Screw, 10-32 X 5/8 Appelez-nous -
36 309122 Seal, Silicone (50``) Appelez-nous -
37 254230 Screw, 10a X 1/2 Appelez-nous -
37 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

37 328427 Oven Appelez-nous -
39 308043 Screw, 10-12 X 5/8 (2) Appelez-nous -
39 307856 Socket, Light Appelez-nous -
40 8009 Bulb, Light   (Replaces: 247591) In-Stock Immediately $ 18.67

41 246134 Screw, 10a X 5/8 Appelez-nous -
41 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 8.47

41 252686 Cover, Bottom (2) Appelez-nous -
42 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

42 308403 Panel, Divider Appelez-nous -
43 308405 Bracket, Support Appelez-nous -
43 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

46 246135 Screw, 8d X 5/16 Appelez-nous -
46 310169 Ballast Appelez-nous -
47 308400 Bracket, Thermostat Appelez-nous -
47 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

48 308406 Thermostat Appelez-nous -
48 246131 Screw, 6a X 3/8 Appelez-nous -
49 308449 Angle, L.s. Appelez-nous -
49 WP488627 Screw, 8a X 1/2   (Replaces: 338156) Special Order $ 8.11

49 308402 Angle, R.s. Appelez-nous -
50 308401 Angle, Top Appelez-nous -
50 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

51 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

51 255095 Support Angle (2) Appelez-nous -
52 308410 Bushing, Wire Appelez-nous -
53 308526 Bushing, Snap Appelez-nous -
54 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

54 308199 Bracket, Outlet Appelez-nous -
56 308237 Outlet Appelez-nous -
57 308241 Tie, Wire Appelez-nous -
58 309197 Button, Black Appelez-nous -
58 328066 Frame Trim Appelez-nous -
58 307748 Screw, 10a X 1/2 Appelez-nous -
59 308396 Foam Block Appelez-nous -
60 308496 Angle Stiffener Appelez-nous -
61 WP854334 Seal, Air   (Replaces: 307547) Special Order $ 13.94

62 WP854334 Seal, Air   (Replaces: 307618) Special Order $ 13.94


    View Diagram in Separate Window     Print Icon   Print Part List

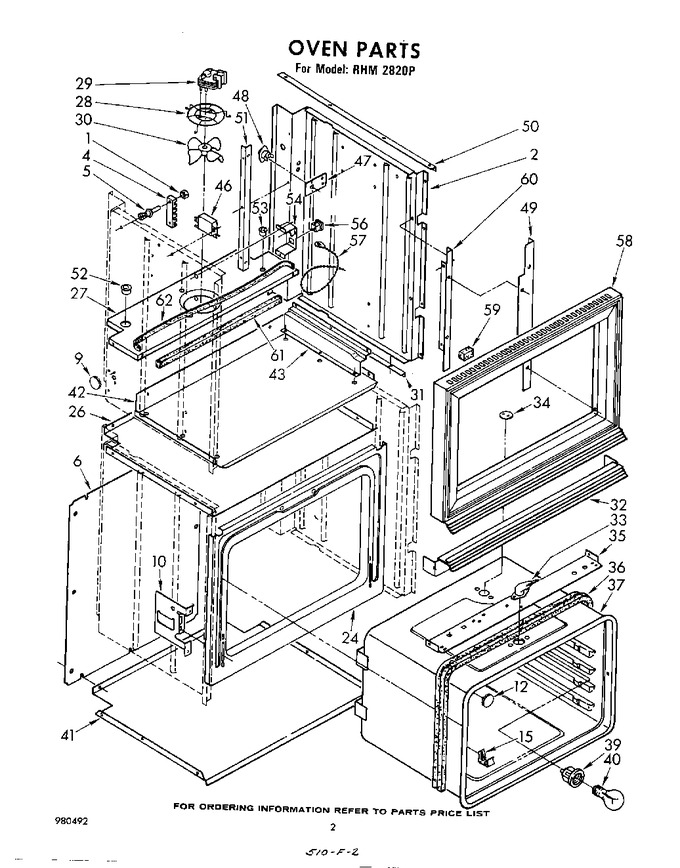

Diagram for RHM2820P
