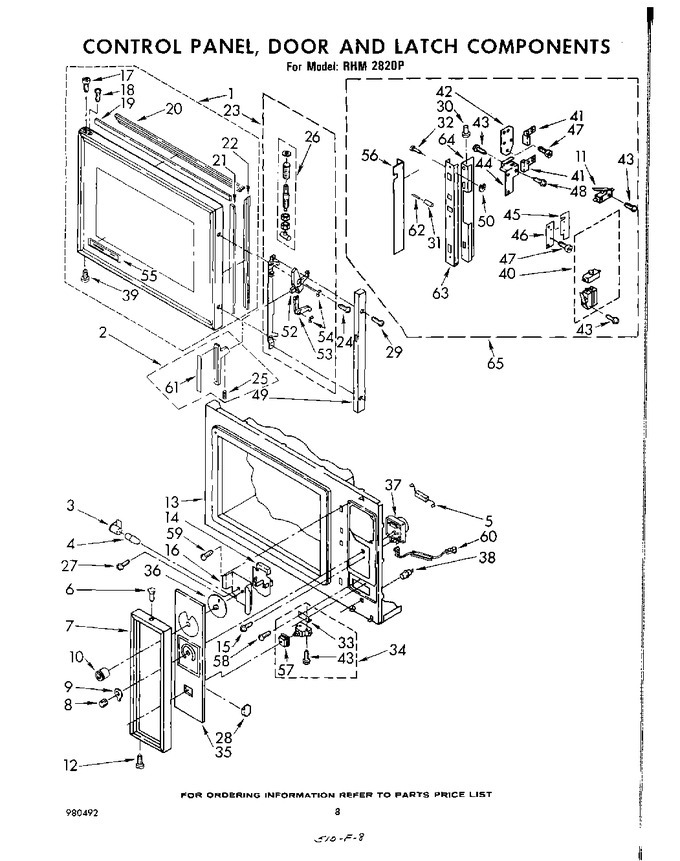

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328007		Door, Complete		Appelez-nous	-
2	328370		Handle, Door		Appelez-nous	-
3	307573		Socket, Lamp		Appelez-nous	-
4	307574		Lamp, Slide Control		Appelez-nous	-
5	832781		Resistor, 10 Ohm		Appelez-nous	-
6	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 8.11
7	307550		Frame, Control Panel		Appelez-nous	-
8	307673		Knob, Timer (1)		Appelez-nous	-
9	307644		Skirt, Dial		Appelez-nous	-
10	308708		Knob, Timer		Appelez-nous	-
11	308416		Switch, Secondary		Appelez-nous	-
12	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 11.87
13	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
14	309638		Timer, Minute		Appelez-nous	-
15	WP487353		Screw, 6-18 X 3/8 (2)   (Replaces: 307842)				$ 7.95
16	307558		Bracket, Timer		Appelez-nous	-
17	307536		Screw, 8d X .312 (2)		Appelez-nous	-
18	307537		Xscrew, 8-32 X .312 (6)		Appelez-nous	-
19	307544		Seal, Top & Bottom (2)		Appelez-nous	-
20	307545		Retainer, Top & Bottom Seal (2)		Appelez-nous	-
21	307543		Seal, Side (2)		Appelez-nous	-
22	307546		Retainer, Side Seal (2)		Appelez-nous	-
23	328012		Latch, Door		Appelez-nous	-
24	309080		Xscrew, 8-32 X 3/8 (2)		Appelez-nous	-
25	307577		Setscrew, 8-32		Appelez-nous	-
26	261853		Plunger, Latch		Appelez-nous	-
27	487384		Screw, 6-32 X 1/4		Appelez-nous	-
28	307552		Clip, Panel Mounting (12)		Appelez-nous	-
29	307608		Screw, 8d X 5/16 (2)		Appelez-nous	-
30	307578		Bumper		Appelez-nous	-
31	307604		Roller, Latch		Appelez-nous	-
32	307603		Pin, Roller (2)		Appelez-nous	-
33	307648		Bracket, Switch Mounting		Appelez-nous	-
34	328513		Switch, Push-start		Appelez-nous	-
35	309957		Panel, Control		Appelez-nous	-
36	328574		Dial, Timer		Appelez-nous	-
37	309967		Power Selector (includes Illus. 5)		Appelez-nous	-
38	307636		Light, Pilot		Appelez-nous	-
39	308785		Pin, Hinge		Appelez-nous	-
40	261877		Switch, Kit, Door (kit Contains 2 Switches. Both Switches Must Be Replaced If One Fails.) (note: Fus		Appelez-nous	-
41	307611		Insulator, Switch (top)		Appelez-nous	-
42	307586		Plate, Top Switch Mounting		Appelez-nous	-
43	98106		Screw, 6-32 X 7/8 (6)		Appelez-nous	-
44	307606		Bracket, Switch		Appelez-nous	-
45	307835		Insulator, Switch (bottom)		Appelez-nous	-
46	307836		Plate, Bottom Switch Mounting		Appelez-nous	-
47	WP250830		Screw, 8-32 X 1/2 (7)   (Replaces: 254562)				$ 8.78
48	309080		Screw 8-32 X 3/8		Appelez-nous	-
49	307584		End Cap, Door		Appelez-nous	-
50	307605		Ring, Retaining (2)		Appelez-nous	-
52	307556		Handle, Cam		Appelez-nous	-
53	307596		Latch, Concealed		Appelez-nous	-
54	308187		Ring, ``e``		Appelez-nous	-
55	307688		Label, Door		Appelez-nous	-
56	309963		Shield, Light		Appelez-nous	-
57	308694		Button		Appelez-nous	-
58	246131		Screw, 6a X 3/8		Appelez-nous	-
59	WP681249		Screw, 6 X 1/2   (Replaces: 309965)			Immediately	$ 8.25
60	328023		Resistor, 3 Ohm		Appelez-nous	-
61	309365		Insert, Handle		Appelez-nous	-
62	307612		Pin, Roller		Appelez-nous	-
63	307560		Guide, Channel (not A Serviceable Part)		Appelez-nous	-
64	307559		Slide, Channel (not A Serviceable Part)		Appelez-nous	-
65	328743		Interlock Assembly		Appelez-nous	-
