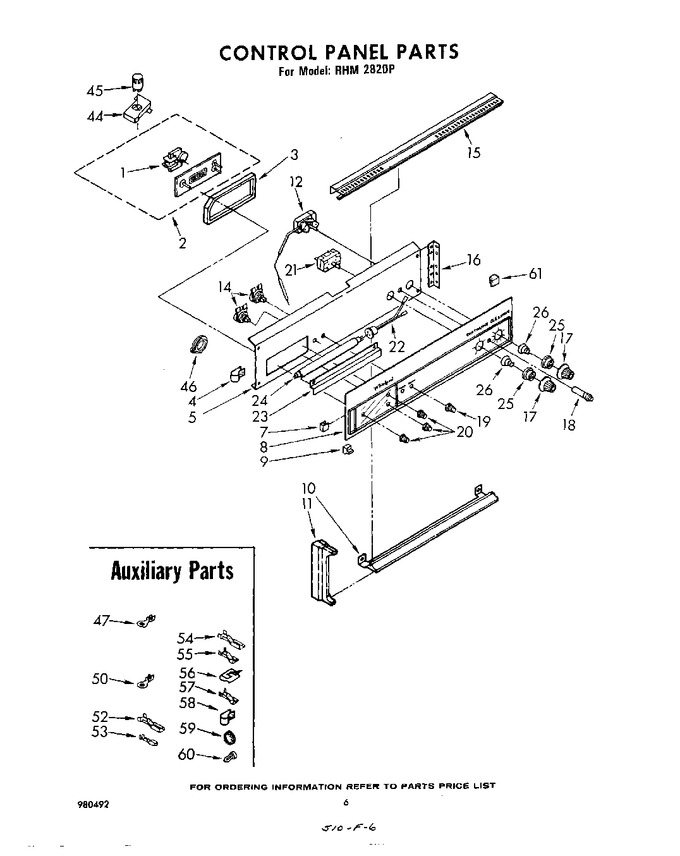

05 - Control Panel, Door And Latch


06 - Cabinet, Hinge And Stirrer


07 - Magnetron And Air Flow , Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307738		Motor, Timer		Appelez-nous	-
2	246131		Screw, 6a X 3/8		Appelez-nous	-
2	307708		Timer Assembly, Digital		Appelez-nous	-
3	255894		Seal, Backguard		Appelez-nous	-
4	246127		Screw, 10-32 X 5/8		Appelez-nous	-
4	255567		Clamp, Cable (5/8``)		Appelez-nous	-
4	255562		Clamp, Cable (1/4``)		Appelez-nous	-
4	166681		Screw, 10-32 X 5/16		Appelez-nous	-
4	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 8.11
4	WP308685		Screw, 10a X1/2   (Replaces: 253549)			Immediately	$ 7.87
5	WP488627		Screw, 8a X 1/2   (Replaces: 338156)				$ 8.11
5	166681		Screw, 10-32 X 5/16		Appelez-nous	-
5	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 11.87
5	307450		Panel, Control		Appelez-nous	-
7	255859		Channel, Rubber (2)		Appelez-nous	-
8	308313		Panel, Glass		Appelez-nous	-
9	258866		Retainer, Glass (light Gray) (4)		Appelez-nous	-
10	252193		Trim, Bottom		Appelez-nous	-
10	258856		Screw, No. 6		Appelez-nous	-
11	258811		Cap, End (2)		Appelez-nous	-
12	487384		Screw, 6-32 X 1/4		Appelez-nous	-
12	258961		Thermostat		Appelez-nous	-
14	255912		Nut, Hex (1/2)		Appelez-nous	-
14	255989		Switch, Rotary		Appelez-nous	-
15	308495		Trim, Top		Appelez-nous	-
16	258855		Screw, No. 8		Appelez-nous	-
16	255860		Bracket, Control Panel (2)		Appelez-nous	-
17	WP307458		Knob, Control (2)   (Replaces: 307458)				$ 20.07
18	256937		Light, Indicator (2)		Appelez-nous	-
19	255990		Knob, Rotary Switch (2)		Appelez-nous	-
20	255853		Knob, Timer (3)		Appelez-nous	-
21	309027		Switch, Selector		Appelez-nous	-
21	257116		Pal Nut		Appelez-nous	-
21	255912		Hex Nut, 1/2``		Appelez-nous	-
22	255359		Socket, Light L.h.		Appelez-nous	-
22	256741		Socket, Light R.h.		Appelez-nous	-
23	255942		Bushing		Appelez-nous	-
23	307453		Shield, Lamp		Appelez-nous	-
23	246131		Screw, 6a X 3/8		Appelez-nous	-
24	21914		Lamp, Fluorescent		Appelez-nous	-
25	307456		Bezel (2)				$ 31.10
26	307828		Spring, Bezel (2)		Appelez-nous	-
44	80042		Base, Starter		Appelez-nous	-
45	255570		Starter, Fluorescent Lamp		Appelez-nous	-
46	308576		Clip, Harness		Appelez-nous	-
47	257398		Terminal, Ring (o.a. Length .642)		Appelez-nous	-
50	253032		Terminal, Ring (o.a. Length 1-1/16``)		Appelez-nous	-
52	WP285432		Receptacle, Tab   (Replaces: 255571)				$ 8.16
53	255297		Receptacle, Flag (1/4``)		Appelez-nous	-
54	WP285432		Receptacle, Tab   (Replaces: 257044)				$ 8.16
55	306784		Receptacle, Tab		Appelez-nous	-
56	258757		Clip, Thermostat (2) (plastic)		Appelez-nous	-
56	309211		Clip, Thermostat Tube (1) (steel)		Appelez-nous	-
57	WP248562		Receptacle, Tab   (Replaces: 248562)				$ 8.11
58	255567		Clamp, Cable (5/8``)		Appelez-nous	-
58	246127		Screw, 10-32 X 5/8		Appelez-nous	-
59	258112		Plug, Button (2) (side Wrapper)		Appelez-nous	-
60	258754		Clip, Insulator		Appelez-nous	-
61	255858		Retainer, Glass		Appelez-nous	-
