SELECT A DIAGRAM

02 - Oven


03 - Door And Inner Oven


04 - Control


05 - Control Panel, Door And Latch


06 - Cabinet, Hinge And Stirrer

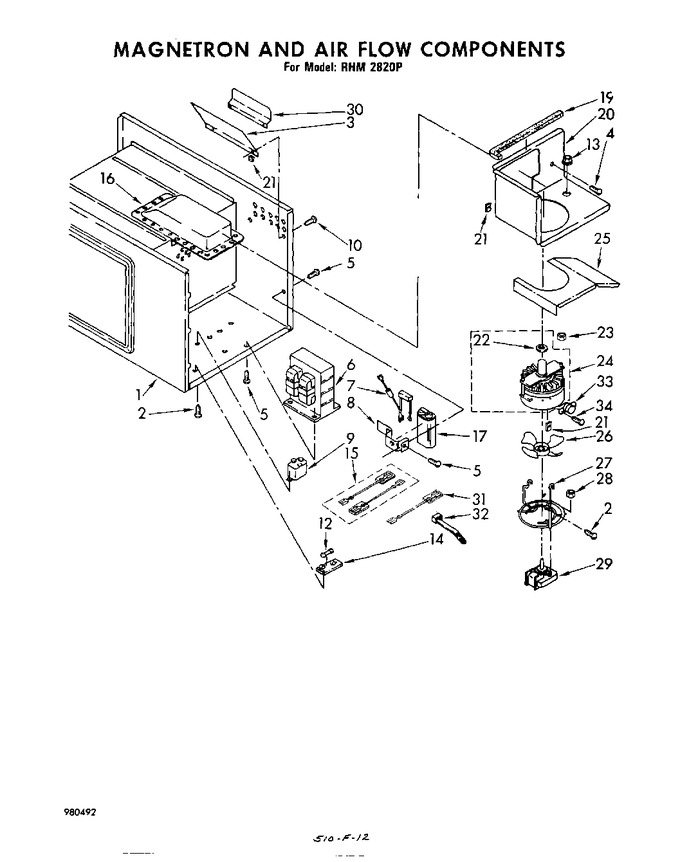

07 - Magnetron And Air Flow , Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	WP308685		Screw, 10a X 1/2 (5)   (Replaces: 253549)			Immediately	$ 7.87
3	307635		Deflector, Air		Appelez-nous	-
4	254217		Screw, 10a X 3/8 (5)		Appelez-nous	-
5	258857		Screw, 10-32 X 1/2 (4)		Appelez-nous	-
6	307676		Transformer		Appelez-nous	-
7	328057		Rectifier, High Voltage Assembly		Appelez-nous	-
8	308572		Bracket, Capacitor		Appelez-nous	-
9	307634		Relay, Shunt		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 11.87
12	WPW10017410		Fuse   (Replaces: 309796)			Immediately	$ 22.23
13	308410		Bushing		Appelez-nous	-
14	309795		Block, Fuse		Appelez-nous	-
15	311144		Wire, High Voltage Magnetron (2) (use W/panasonic Magnetron)		Appelez-nous	-
15	261945		Wire, High Voltage Magnetron (2) (use W/litton Magnetron)		Appelez-nous	-
17	309587		Capacitor		Appelez-nous	-
19	WP854334		Seal, Air Vent (2)   (Replaces: 307618)				$ 13.94
20	307529		Duct, Cooling Air		Appelez-nous	-
21	338177		Clip		Appelez-nous	-
22	310302		Gasket, Magnetron (use W/panasonic Magnetron)		Appelez-nous	-
22	307849		Gasket, Magnetron (use W/litton Magnetron)		Appelez-nous	-
23	WP112432		Nut, Mounting (nut, 10-32 Hex (2) (use W/litton Magnetron))   (Replaces: 112432)				$ 8.63
23	310300		Nut, Mounting (nut, 5mm-0.8 Flange (2) (use W/panasonic Magnetron))		Appelez-nous	-
24	832805		Magnetron Kit, Panasonic		Appelez-nous	-
25	310419		Shield, Magnetron (use W/panasonic Magnetron)		Appelez-nous	-
26	307535		Blade, Fan		Appelez-nous	-
27	310420		Mount, Fan Motor		Appelez-nous	-
28	309486		Nut, Hex (6-32)		Appelez-nous	-
29	307565		Motor, Fan		Appelez-nous	-
30	308219		Deflector, Exhaust		Appelez-nous	-
31	309084		Wire, High Voltage (2)		Appelez-nous	-
32	WPW10339879		Cable, Tie   (Replaces: 309330)				$ 8.30
33	307564		Thermostat		Appelez-nous	-
34	980492		List, Repair Parts		Appelez-nous	-
34	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
34	307677		Tray, Browning (microwave)		Appelez-nous	-
34	308234		Instructions, Installation		Appelez-nous	-
34	309950		Guide, Use & Care (continuous Clean Oven)		Appelez-nous	-
34	309977		Guide, Use & Care (microwave)		Appelez-nous	-
34	310847		Cookbook (microwave)		Appelez-nous	-
34	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
34	246131		Screw, 6a X 3/8		Appelez-nous	-
34	253903		Wire, 10 Ga. Green (25 Ft.)		Appelez-nous	-
34	253906		Wire, 10 Ga. (red) (25 Ft.)		Appelez-nous	-
34	253904		Wire, 10 Ga. (black) (25 Ft.)		Appelez-nous	-
34	253881		Wire, 14 Ga. (white) (25 Ft.)		Appelez-nous	-
34	253882		Wire, 14 Ga. (black) (25 Ft.)		Appelez-nous	-
34	253883		Wire, 14 Ga. (red) (25 Ft.)		Appelez-nous	-
34	253893		Wire, 14 Ga. (blue) (25 Ft.)		Appelez-nous	-
34	253886		Wire, 14 Ga. (green) (25 Ft.)		Appelez-nous	-
34	253894		Wire, 14 Ga. (orange) (25 Ft.)		Appelez-nous	-
34	253897		Wire, 16 Ga. (black) (25 Ft.)		Appelez-nous	-
34	253900		Wire, 16 Ga. (red) (25 Ft.)		Appelez-nous	-
34	253901		Wire, 16 Ga. (white) (25 Ft.)		Appelez-nous	-
34	253879		Wire, 18 Ga. (red) (25 Ft.)		Appelez-nous	-
34	253895		Wire, 18 Ga. (black) (25 Ft.)		Appelez-nous	-
34	253896		Wire, 18 Ga. (white) (25 Ft.)		Appelez-nous	-
34	253889		Wire, 18 Ga. Blue (25 Ft.)		Appelez-nous	-
34	WP261869		Citrine White (microwave)   (Replaces: 261869)				$ 27.83
34	261748		Touch-up, Oven (continuous Clean)		Appelez-nous	-
34	350942		Primer (white)   (Replaces: 206922)				$ 94.14
34	206925		Leveler, Enamel		Appelez-nous	-
34	285006		Enamel, Black   (Replaces: 799339)				$ 59.89
34	350930		Enamel, White   (Replaces: 799343)			Immediately	$ 40.12
34	799351		Thinner (1 Gal.)		Appelez-nous	-
34	253622		Grease, Silicone Oven Door Spring (2 Oz.)		Appelez-nous	-
34	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 81.83
34	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
34	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 58.19
34	240133		Insulation, Fiberglass (3`` X 21`` X 50``)		Appelez-nous	-
	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
	799340		Xenamel, Black (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
