Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 328117 Liner, Door Appelez-nous -
1 229364 Washer, Fibre Appelez-nous -
1 254230 Screw, 10a X 1/2 Appelez-nous -
1 254217 Screw, 10a X 3/8 Appelez-nous -
5 255280 Bar, Torsion (pushnut) Appelez-nous -
5 327740 Bar, Torsion (l.h.) Appelez-nous -
5 327739 Bar, Torsion (r.h.) Appelez-nous -
5 WP681414 Bar, Torsion (screw, 10-16 X 1/2)   (Replaces: 343641) In-Stock Immediately $ 8.47

6 270974 Door Stop Replacement Kit Appelez-nous -
10 258990 Spacer, Door Liner Appelez-nous -
10 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

12 258988 Glass, Inner Appelez-nous -
13 WP488627 Screw, 8a X 1/2   (Replaces: 338156) Special Order $ 8.11

13 258921 Support, Torsion Bar (2) Appelez-nous -
14 258711 Seal, Spacer Appelez-nous -
15 327718 Handle (includes Illus. 18) Appelez-nous -
16 255859 Channel, Rubber (4) Appelez-nous -
17 258980 Frame, Door Front Appelez-nous -
17 254230 Screw, 10a X 1/2 Appelez-nous -
18 258983 Cap, Handle End (2) Appelez-nous -
18 WP488627 Screw, 8a X 1/2   (Replaces: 338156) Special Order $ 8.11

20 258986 Glass, Outer Appelez-nous -
22 WP308685 Screw, 10a X1/2   (Replaces: 253549) In-Stock Immediately $ 7.87

22 327720 Baffle Appelez-nous -
23 258993 Cushion (10) Appelez-nous -
24 258994 Brace, Glass (10) Appelez-nous -
24 258093 Nut, Snap-in Appelez-nous -
25 W11656009 Unit, Broil   (Replaces: 258107) Appelez-nous -
25 246127 Screw, 10-32 X 5/8 Appelez-nous -
26 4396923 Grille, Broiler Pan   (Replaces: 258171) In-Stock Immediately $ 60.71

27 4396923 Pan, Broiler   (Replaces: 258172) In-Stock Immediately $ 60.71

28 306662 Rack, Flat Appelez-nous -
29 306660 Rack, Offset Appelez-nous -
30 246127 Screw, 10-32 X 5/8 Appelez-nous -
30 258978 Unit, Bake Appelez-nous -

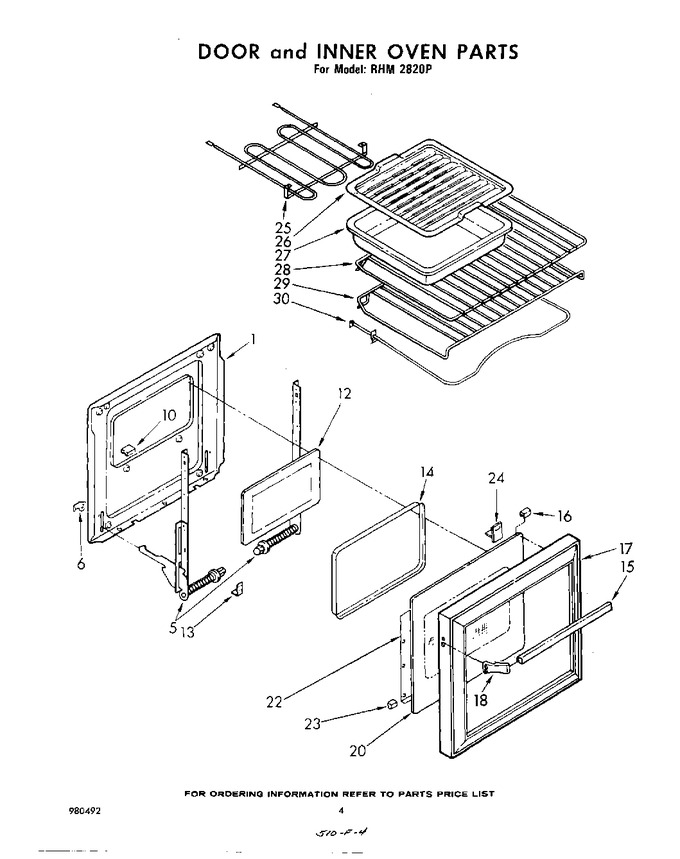

    View Diagram in Separate Window     Print Icon   Print Part List
