SELECT A DIAGRAM

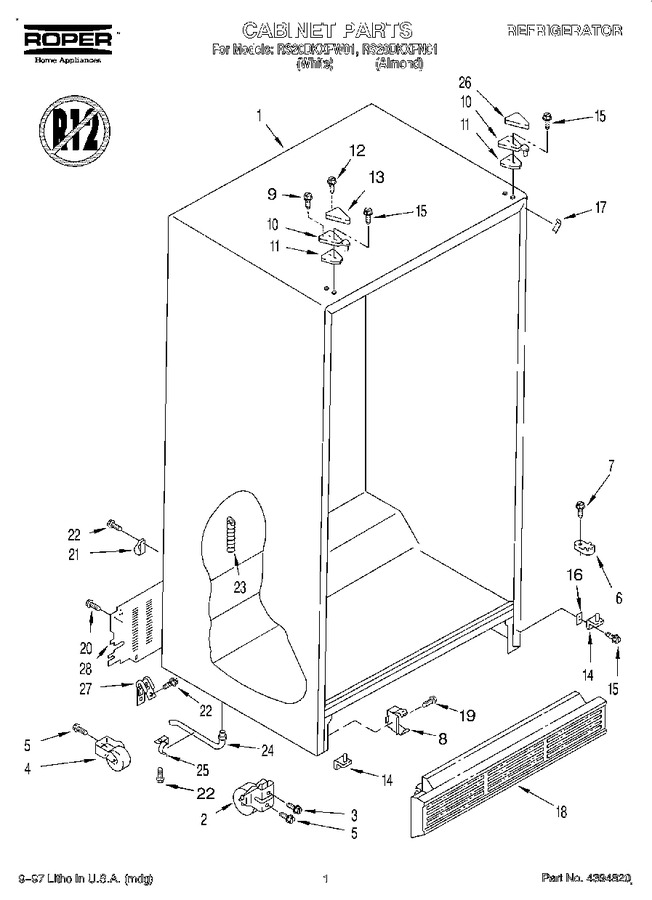

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Air Flow


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 489456)				$ 11.88
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
7	WP489483		Screw   (Replaces: 489483)				$ 10.87
8	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
9	WP488234		Screw   (Replaces: 489422)				$ 6.74
10	WP2196046		Hinge, Top (2)   (Replaces: 2196046)				$ 104.44
11	2196048		Shim, Hinge (2)		Appelez-nous	-
12	489284		Screw		Appelez-nous	-
13	1129262		Hinge Cover (white)				$ 15.75
13	2150343		Hinge Cover (almond)		Appelez-nous	-
14	8201707		Hinge Bottom (2)   (Replaces: 2171851)				$ 88.90
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2181911		Spacer, Hinge   (Replaces: 2181911)				$ 33.21
17	1110709		Filler, Wrapper (almond)		Appelez-nous	-
17	1110708		Filler, Wrapper (white)		Appelez-nous	-
18	2155476		Grille				$ 62.20
19	WP489478		Screw   (Replaces: 489478)				$ 7.75
20	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
21	WP488366		Clamp   (Replaces: 489385)				$ 11.18
22	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
23	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 50.90
24	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
25	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
26	1119787		Hinge Cover (white)				$ 22.50
26	1119789		Hinge Cover (almond)		Appelez-nous	-
27	549193		Clamp-service Cord				$ 13.39
28	WP2188756		Cover, Unit   (Replaces: 2171936)				$ 141.67

    View Diagram in Separate Window       Print Part List
