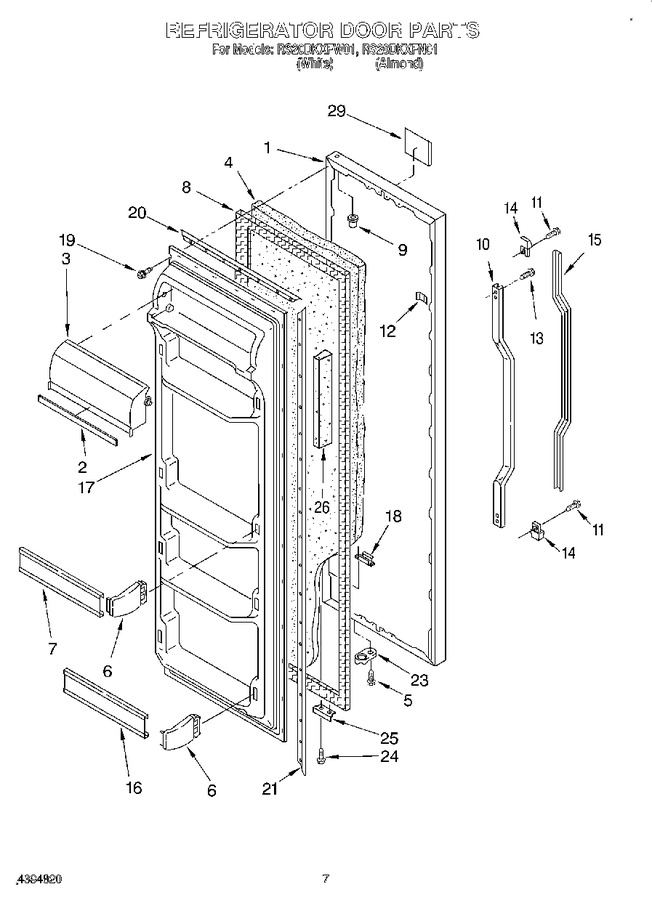

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194611W		Refrigerator Door Panel (white)		Appelez-nous	-
1	2194611N		Refrigerator Door Panel (almond (also Order Item 4))		Appelez-nous	-
2	2162896		Trim, Compartment		Appelez-nous	-
3	2148289		Compartment Door		Appelez-nous	-
4	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	WP2196189		End Cap (right Side (4))   (Replaces: 2182123)				$ 13.39
6	WP2196190		End Cap (left Side (4))   (Replaces: 2182122)				$ 13.85
7	WP2182189		Trim, Door Shelf (2)   (Replaces: 2182189)				$ 95.77
8	2188404A		Door Gasket, Magnetic   (Replaces: 1129266)				$ 269.26
9	509929		Cap, Hinge Sleeve		Appelez-nous	-
10	2198036		Handle, Insert		Appelez-nous	-
11	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
12	941242		Screw Anchor (2)		Appelez-nous	-
13	WP489463		Screw   (Replaces: 489463)				$ 7.82
14	2194778B		Endcap		Appelez-nous	-
15	2198037		Insert, Handle		Appelez-nous	-
16	2182190		Trim, Door Shelf (2)		Appelez-nous	-
17	1124961		Panel, Interior		Appelez-nous	-
18	2155335		Tap, Plate		Appelez-nous	-
19	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
20	1118301		Retainer, Gasket		Appelez-nous	-
21	1117766		Retainer, Gasket				$ 36.55
23	4318165		Cam, Door Closer   (Replaces: 2182132)			Immediately	$ 27.36
24	WP489483		Screw   (Replaces: 489420)				$ 10.87
25	2195950		Bracket, Door Stop				$ 5.84
26	2152266		Reinforcement, Shelf		Appelez-nous	-
29	2163676		Nameplate				$ 36.02
