SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Air Flow


05 - Refrigerator Door


06 - Freezer Door

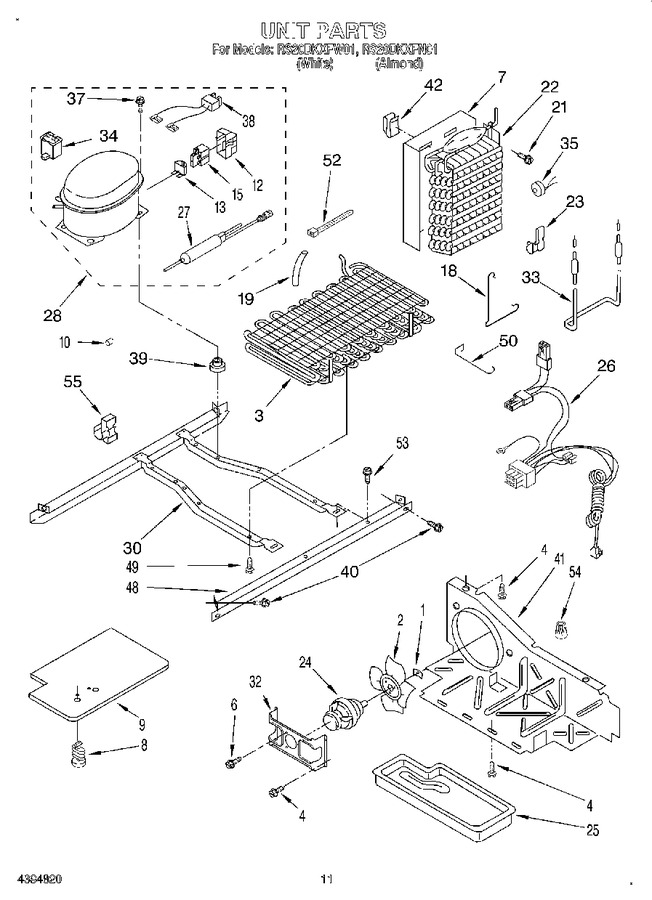

07 - Unit


08 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	1108179		Fan, Blade				$ 49.54
3	2198175		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
6	681390		Screw   (Replaces: 489099)				$ 13.06
7	2149293		Heat Shield And Drain Pan		Appelez-nous	-
8	489396		Clip				$ 10.72
9	2182057		Cover, Unit Compartment				$ 72.28
10	WP2158826		Dampener   (Replaces: 2158826)				$ 1.73
12	WP2162358		Cover   (Replaces: 2162358)				$ 90.75
13	WP61006294		Overload   (Replaces: 2162218)				$ 115.41
15	2183454		Relay		Appelez-nous	-
18	2161324		Clip, Defrost Heater		Appelez-nous	-
19	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
21	WP965173		Screw   (Replaces: 487869)			Immediately	$ 10.72
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 339.85
23	2161330		Clip, Heater (2)		Appelez-nous	-
24	W10822259		Fan, Motor   (Replaces: 2176336)			Immediately	$ 221.30
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2194747		Harness, Intermediate		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2164409)			Immediately	$ 52.57
28	W10309990		Compressor (includes Items 10, 11, 12, 13, 15, 27 & 34)   (Replaces: 2183453)			Immediately	$ 632.81
30	2160498		Unit Mounting Frame		Appelez-nous	-
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
33	WP2323197		Heater, Defrost   (Replaces: 2176064)			Immediately	$ 117.38
34	2169137		Capacitor (service Compressor Only)		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2176066)			Immediately	$ 50.77
37	876811		Screw   (Replaces: 489373)				$ 7.42
38	WP2172890		Wire   (Replaces: 2172890)				$ 8.10
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
40	489340		Screw		Appelez-nous	-
41	2155301		Air Baffle		Appelez-nous	-
42	2155547		Clip, Heat Shield		Appelez-nous	-
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 40.58
52	WPW10339879		Strap   (Replaces: 2172840)				$ 7.90
53	WP489427		Screw   (Replaces: 489427)				$ 7.47
54	850145		Wire Connector		Appelez-nous	-
55	876764		Valve, Access(3/16``)			Immediately	$ 91.35
55	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
55	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
55	978028		Valve, Access (1/2)		Appelez-nous	-
55	978029		Valve Access (5/8``)				$ 93.85
55	978030		Valve, Access (3/4``)				$ 130.71
55	2155658		Clip, Wire And Water Tube		Appelez-nous	-
55	978026		Valve, Access (5/16``)			Immediately	$ 128.09

    View Diagram in Separate Window       Print Part List
