SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Air Flow


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Control, Lit/optional

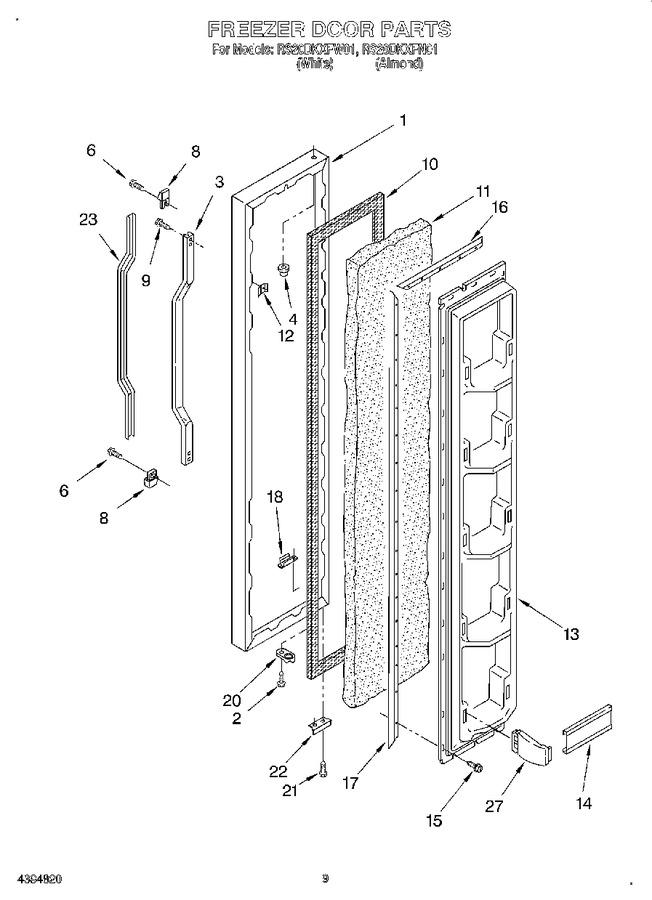

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194613W		Freezer, Door Panel (white)		Appelez-nous	-
1	2194613N		Freezer, Door Panel (almond)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
3	2198036		Handle, Insert		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
6	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
8	2194778B		Endcap		Appelez-nous	-
9	WP489463		Screw   (Replaces: 489463)				$ 7.82
10	2188405A		Door Gasket, Magnetic   (Replaces: 1129267)				$ 351.08
11	876029		Foam Insulation		Appelez-nous	-
12	941242		Screw Anchor (2)		Appelez-nous	-
13	1129241		Panel, Interior Door		Appelez-nous	-
14	2195921		Trim, Shelf (5)				$ 23.06
15	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
16	1117767		Retainer, Gasket		Appelez-nous	-
17	1117766		Retainer, Gasket				$ 36.55
18	2155335		Tap, Plate		Appelez-nous	-
20	4318165		Cam, Door Closer   (Replaces: 2182132)			Immediately	$ 27.36
21	WP999367		Screw   (Replaces: 489367)				$ 7.86
22	2195950		Bracket, Door Stop				$ 5.84
23	2198037		Insert, Handle		Appelez-nous	-
27	WP2196100		End Cap, Trim   (Replaces: 1110719)			Immediately	$ 8.66

    View Diagram in Separate Window       Print Part List
