SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Freezer Liner


04 - Air Flow


05 - Refrigerator Door


06 - Freezer Door


07 - Unit


08 - Control, Lit/optional

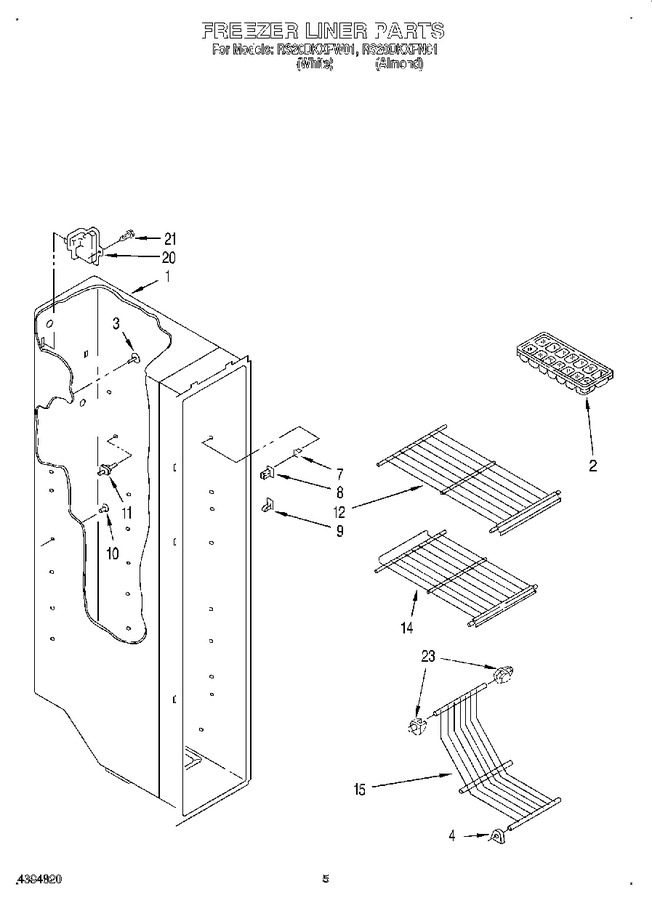

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 45.56
3	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
4	216446		Grommet		Appelez-nous	-
7	946355		Support, Stud (10)		Appelez-nous	-
8	946356		Stud, Front (4)		Appelez-nous	-
9	1106982		Stud R.s. Rear (4)		Appelez-nous	-
10	2176134		Grommet (10)				$ 5.83
11	4388538		Stud (4)   (Replaces: 1110718)			Immediately	$ 31.34
12	2163612		Shelf		Appelez-nous	-
14	2174269		Shelf (1)		Appelez-nous	-
14	2174270		Shelf (2)		Appelez-nous	-
15	1116756		Trivet		Appelez-nous	-
20	2155401		Cover, Wiring		Appelez-nous	-
21	W11233072		Screw   (Replaces: 489355)			Immediately	$ 14.02
23	819091		Saddle Stud (left Side)   (Replaces: 946358)				$ 39.68
23	819091		Saddle Stud (right Side)   (Replaces: 946357)				$ 39.68

    View Diagram in Separate Window       Print Part List
