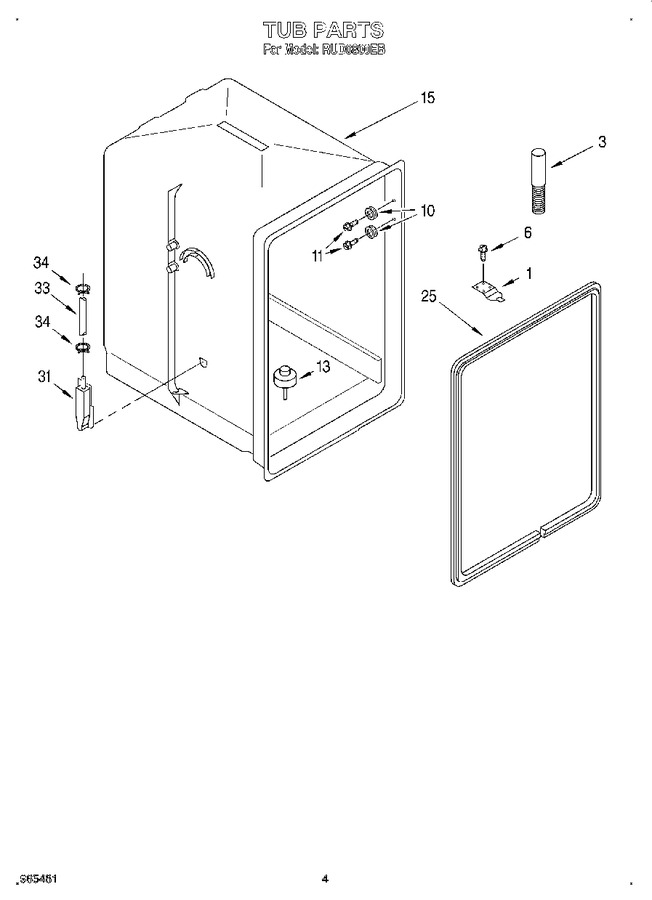

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	965523		Strike, Door		Appelez-nous	-
3	965524		Hose, Drain		Appelez-nous	-
6	965477		Screw, 10-10 X 9/16		Appelez-nous	-
10	965526		Roller, Tub		Appelez-nous	-
11	965527		Screw, Roller (includes Item 8)		Appelez-nous	-
13	965528		Float		Appelez-nous	-
15	965529		Tub & Gasket Assembly (includes Item 25)		Appelez-nous	-
25	965530		Gasket, Tub		Appelez-nous	-
31	965533		Inlet, Water		Appelez-nous	-
33	965531		Tubing, Inlet (includes Item 34)		Appelez-nous	-
34	965532		Clamp (2)		Appelez-nous	-
