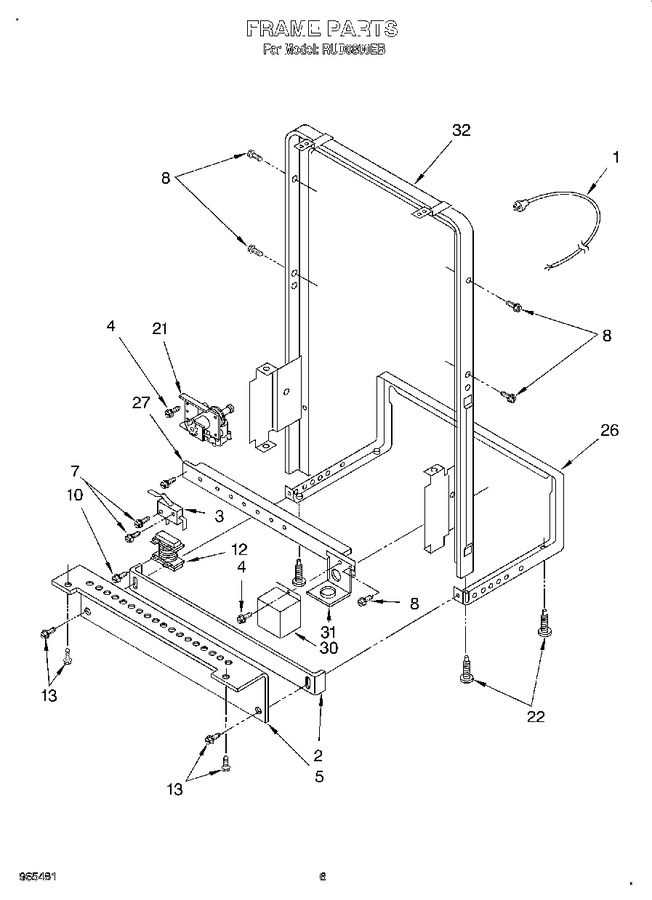

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	965337		Power Cord (optional)		Appelez-nous	-
2	965518		Toeplate, Adjustable		Appelez-nous	-
3	965520		Switch, Float		Appelez-nous	-
4	965510		Screw, 10-32 X 3/8		Appelez-nous	-
5	965511		Toeplate		Appelez-nous	-
6	965521		Bracket, Float Switch		Appelez-nous	-
7	965522		Screw, 10 X 5/8		Appelez-nous	-
8	965477		Screw, 10-10 X 9/16		Appelez-nous	-
10	4340129		Screw, Relay		Appelez-nous	-
12	965465		Relay, Motor		Appelez-nous	-
13	4340701		Screw, 8a X 3/8		Appelez-nous	-
21	WPR9800089		Valve, Inlet   (Replaces: 965512)				$ 197.74
22	965513		Levelers (4)		Appelez-nous	-
26	965514		Frame, Rear		Appelez-nous	-
27	965519		Brace, Front		Appelez-nous	-
30	965515		Cover, Junction Box		Appelez-nous	-
31	965516		Bracket, Junction Box		Appelez-nous	-
32	965517		Frame Assy., Front		Appelez-nous	-
	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
	LIT965557		Instructions, Installation		Appelez-nous	-
	WP676455		Vinyl Touch-up (grey)   (Replaces: 676455)			Immediately	$ 39.58
	676458		Tine Tip Repair Kit (grey Enough For Two Complete Dishracks)				$ 48.32
	LIT965480		Guide, Use & Care		Appelez-nous	-
	LIT965558		Guide, Energy		Appelez-nous	-
	285006		Paint, Spray 13 Oz. (black)				$ 59.89
	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
	W10840471		Vinyl Touch-up (blue)   (Replaces: 675576)				$ 47.66
	675677		Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks)		Appelez-nous	-
	WP676453		Vinyl Touch-up (white)   (Replaces: 676453)			Immediately	$ 53.65
	675679		Tine Tip Repair Kit (white - Enough For Two Complete Dishracks)			Immediately	$ 38.83

    View Diagram in Separate Window       Print Part List
