SELECT A DIAGRAM
01 - Control Panel
02 - Door And Toe Panel
03 - Tub
04 - Dishrack
05 - Frame, Lit/optional
06 - Pump And Sprayarm
07 - Detergent Cup
SELECT A DIAGRAM
New Model Search:

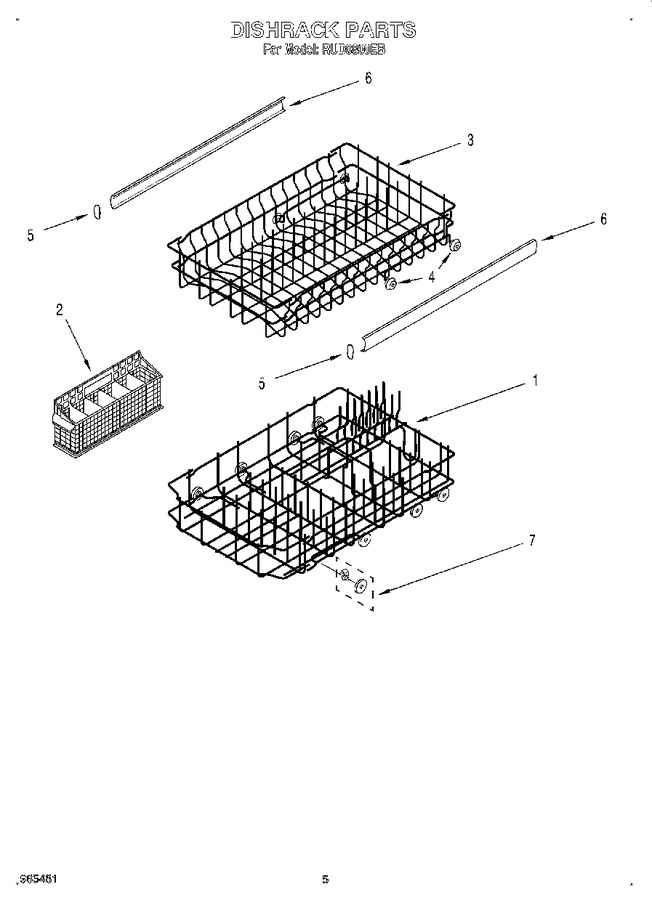

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 965550 | Dishrack, Lower (includes Item 7) |
|
- | |||||
| 2 | 965551 | Basket, Silverware |
|
- | |||||
| 3 | 965552 | Dishrack, Upper (includes Item 4) |
|
- | |||||
| 4 | 965553 | Wheel Assembly, Upper Rack (4) |
|
- | |||||
| 5 | 5300809927 | End Cap, Slide (4) (Replaces: 965554) |
|
Immediately | $ 4.10 | ||||
| 6 | 965555 | Slide, Rack (2) |
|
- | |||||
| 7 | 965556 | Wheel Assembly, Lower Rack (4) |
|
- |
