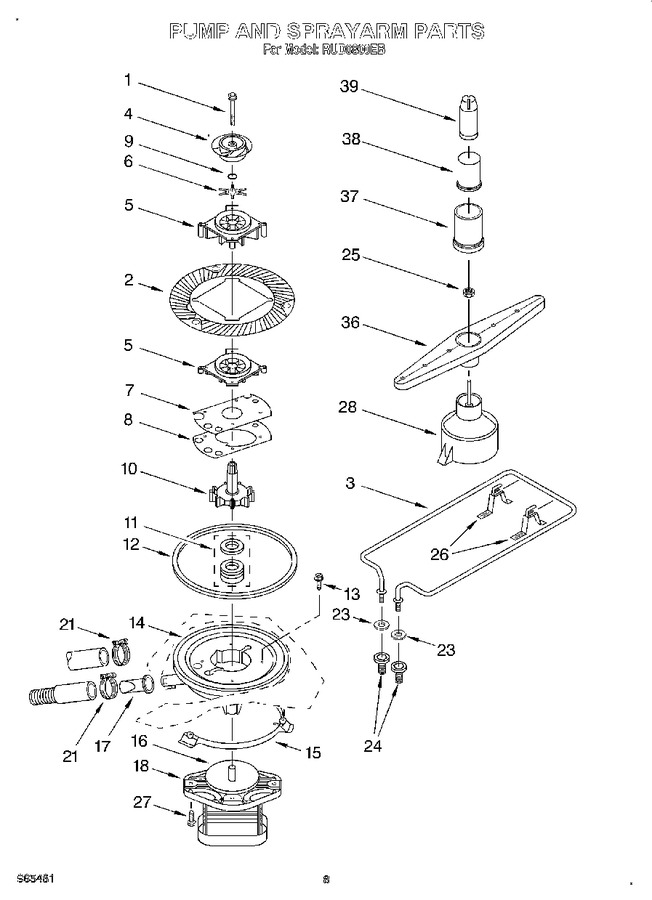

06 - Pump And Sprayarm


07 - Detergent Cup


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4340235		Screw, No.10-32 X 2 1/4		Appelez-nous	-
2	965547		Plate, Strainer		Appelez-nous	-
3	965534		Heater		Appelez-nous	-
4	965384		Upper Impeller		Appelez-nous	-
5	965385		Spacer Plate		Appelez-nous	-
6	965390		Macerator		Appelez-nous	-
7	4340510		Pump Plate		Appelez-nous	-
8	4340487		Pump Gasket		Appelez-nous	-
9	4340254		O-ring		Appelez-nous	-
10	965396		Pump Seal Kit		Appelez-nous	-
11	4340106		Water Seal		Appelez-nous	-
12	965535		Gasket, Pump		Appelez-nous	-
13	965536		Screw, Pump Housing		Appelez-nous	-
14	965537		Housing, Pump		Appelez-nous	-
15	965538		Clamp, Pump		Appelez-nous	-
16	4340897		Watershield Assembly		Appelez-nous	-
17	965418		Valve, Check		Appelez-nous	-
18	965539		Motor Assembly		Appelez-nous	-
19	4340107		Tool, Seal Installation		Appelez-nous	-
21	965540		Clamp, Hose		Appelez-nous	-
23	965541		Washer, Insulating		Appelez-nous	-
24	965542		Nut, Heater		Appelez-nous	-
25	965548		Nut, Spray Arm		Appelez-nous	-
26	965549		Bracket, Heater		Appelez-nous	-
27	965543		Screw, Motor Mounting		Appelez-nous	-
28	965544		Diffuser		Appelez-nous	-
36	965545		Sprayarm, Lower		Appelez-nous	-
37	965462		Base, Tower		Appelez-nous	-
38	965463		Middle, Tower		Appelez-nous	-
39	965546		Tip, Tower		Appelez-nous	-
