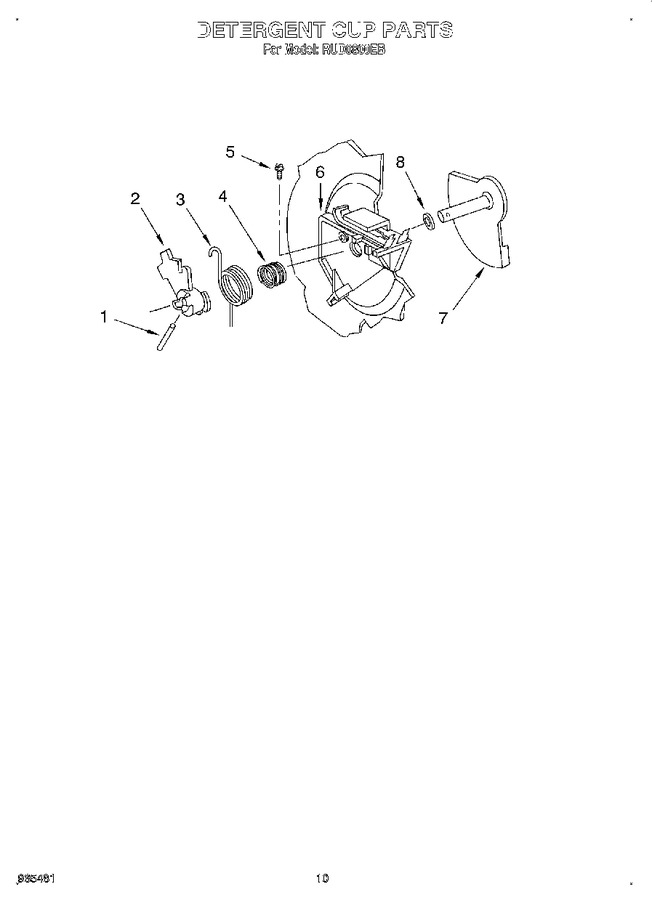

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 965448 | Pin, Spiral |
|
- | |||||
| 2 | 965473 | Cam |
|
- | |||||
| 3 | 965201 | Spring, Cam |
|
- | |||||
| 4 | 965202 | Spring, Cam Compression |
|
- | |||||
| 5 | 965509 | Screw |
|
- | |||||
| 6 | 965476 | Bi-metal Assembly |
|
- | |||||
| 7 | 965474 | Lid, Dispenser |
|
- | |||||
| 8 | 965475 | ``o`` Ring |
|
- |
