Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 04021191 Blower Assembly 1 Appelez-nous -
2 Y04020842 Duct Assembly, Magnetron 1 Appelez-nous -
3 Y02170111 Support, Duct Magnetron 1 Appelez-nous -
4 03010138 Screw 1 Appelez-nous -
5 05140008 Roll Of 1/2 X 1/2 Tape (foam) 1 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

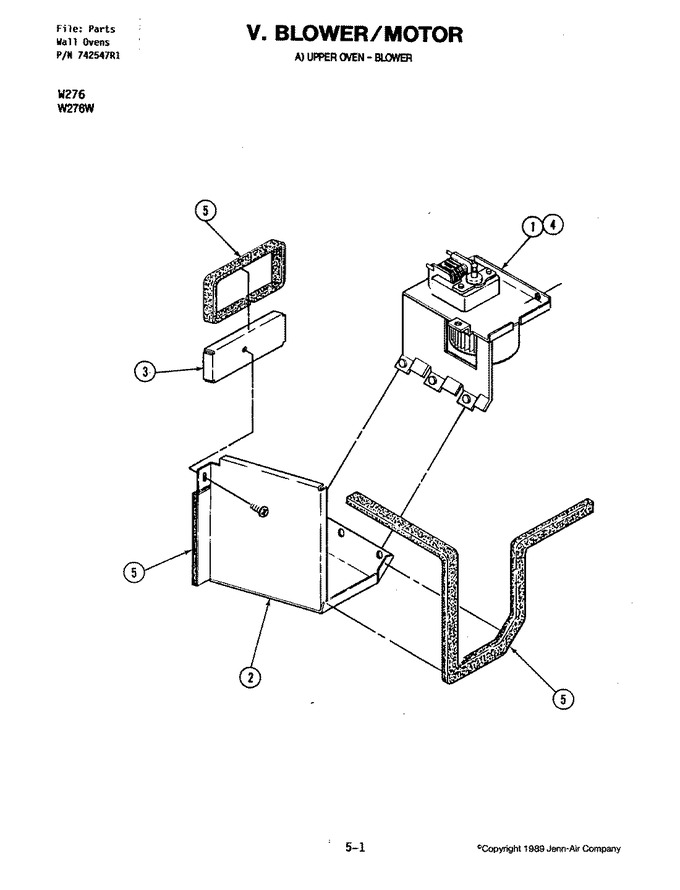

Diagram for W276
