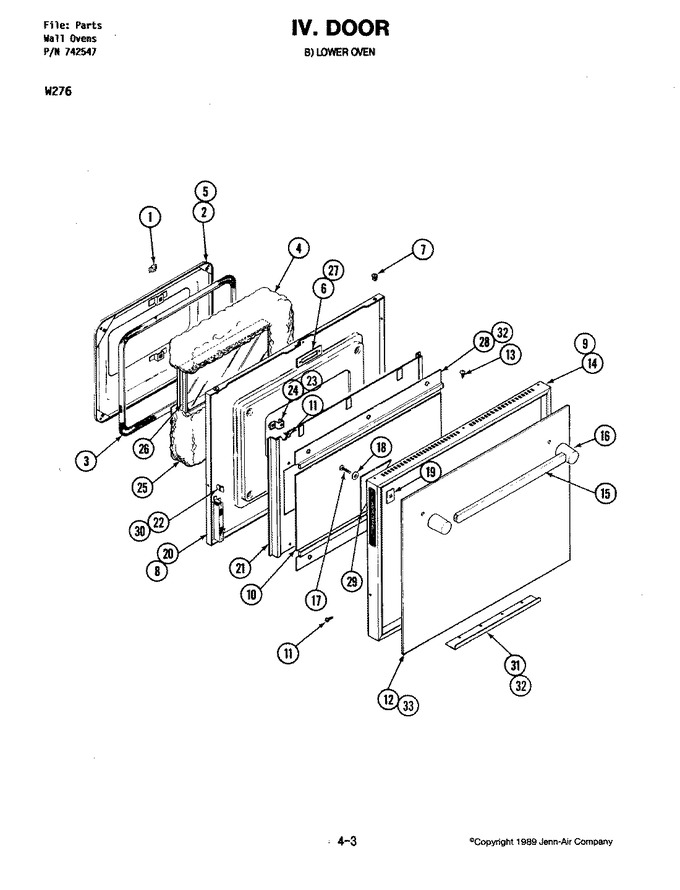

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 2 | Y712493 | Plug | 1 |
|
- | ||||
| 3 | WP701650 | Seal, Oven Door (Replaces: 701650) | 1 |
|
$ 193.85 | ||||
| 4 | DE81-08905A | Insulation, Side (Replaces: 701659) | 1 |
|
$ 160.26 | ||||
| 5 | 701660 | Insulation, Top | 1 |
|
- | ||||
| 6 | Y712010 | Plate, Latch (upper) | 1 |
|
- | ||||
| 7 | 701643 | Nut, Push In | 1 |
|
- | ||||
| 8 | DE81-07129A | Rivet, Accordion (Replaces: 701641) | 1 |
|
$ 128.48 | ||||
| 9 | W11233072 | Screw (blk) (Replaces: Y704237) | 1 |
|
Immediately | $ 13.25 | |||
| 10 | Y704820 | Glass, Baffle | 1 |
|
- | ||||
| 11 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 13.25 | |||
| 12 | 704495 | Glass | 1 |
|
- | ||||
| 13 | WPY706189 | Screw (blk) (Replaces: Y704238) | 1 |
|
Immediately | $ 6.80 | |||
| 14 | 704492 | Frame | 1 |
|
- | ||||
| 15 | Y704225 | Handle | 1 |
|
- | ||||
| 16 | Y704224 | End Cap (blk) | 1 |
|
- | ||||
| 17 | 704963 | Screw | 1 |
|
- | ||||
| 18 | 701736 | Washer | 1 |
|
- | ||||
| 19 | Y704489 | Bushing | 1 |
|
- | ||||
| 20 | 712188 | Liner, Door | 1 |
|
- | ||||
| 21 | 712250 | Baffle | 1 |
|
- | ||||
| 22 | 704487 | Clip | 1 |
|
- | ||||
| 23 | W11233072 | Screw (blk) (Replaces: Y704237) | 1 |
|
Immediately | $ 13.25 | |||
| 24 | 701652 | Bracket, Stand-off | 1 |
|
- | ||||
| 25 | 701658 | Insulation, Bottom | 1 |
|
- | ||||
| 26 | 701648 | Window Pack | 1 |
|
- | ||||
| 27 | WP210720 | Rivet (Replaces: 701662) | 1 |
|
$ 12.74 | ||||
| 28 | Y704819 | Retainer, Glass | 1 |
|
- | ||||
| 29 | 704805 | Gusset----na | 1 |
|
- | ||||
| 30 | Y704488 | Screw (black) | 1 |
|
- | ||||
| 31 | Y704498 | Rail, Glass | 1 |
|
- | ||||
| 32 | Y700584 | Screw | 1 |
|
- | ||||
| 33 | 704491 | Tape, Foam | 1 |
|
- |
