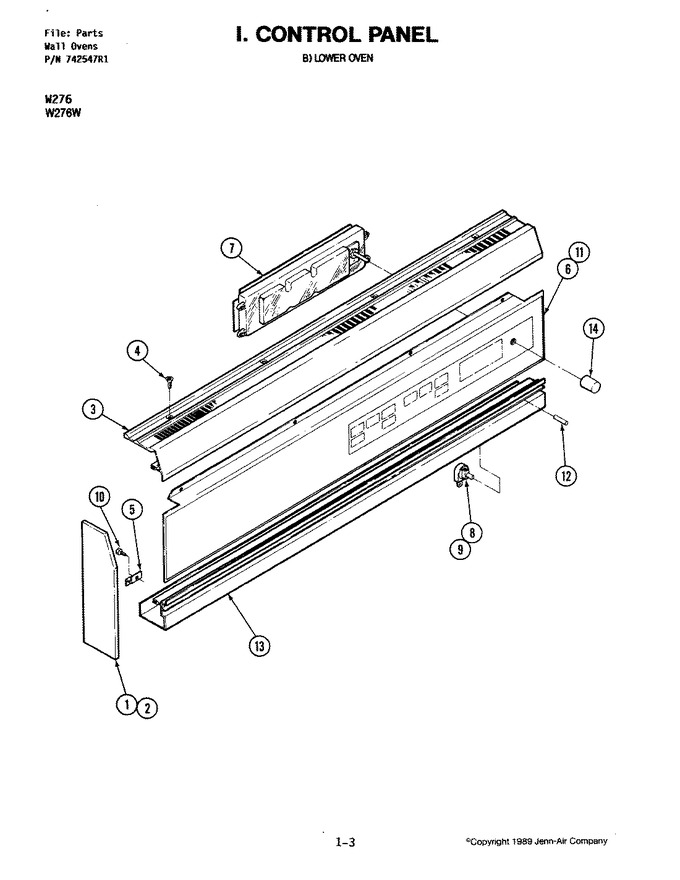

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y704692 | Cap, End (rt/blk) | 1 |
|
- | ||||
| 2 | Y704691 | Cap, End (lt/blk) | 1 |
|
- | ||||
| 3 | 704690 | Extrusion, Top (blk) | 1 |
|
- | ||||
| 4 | 704714 | Screw, Trim | 1 |
|
- | ||||
| 5 | 701609 | Angle, Attachment | 1 |
|
- | ||||
| 6 | Y712603 | Control Panel Back Assembly | 1 |
|
- | ||||
| 7 | Y704728 | Clock | 1 |
|
- | ||||
| 8 | 704974 | Wire, Gray | 1 |
|
- | ||||
| 8 | 704797 | Switch, Push (blk) | 1 |
|
- | ||||
| 9 | 704730 | Bracket, Switch | 1 |
|
- | ||||
| 10 | WP12990527 | Screw (Replaces: Y708955) | 1 |
|
Immediately | $ 7.88 | |||
| 11 | 704704 | Harness, Wire (j2) | 1 |
|
- | ||||
| 12 | 704798 | Extension, Switch (blk) | 1 |
|
- | ||||
| 13 | 704688 | Extrusion, Bottom | 1 |
|
- | ||||
| 14 | WP7711P492-60 | Knob, Clock (blk) (Replaces: Y703910) | 1 |
|
$ 12.74 | ||||
| 14 | 705031 | Harness, Wire | 1 |
|
- |
