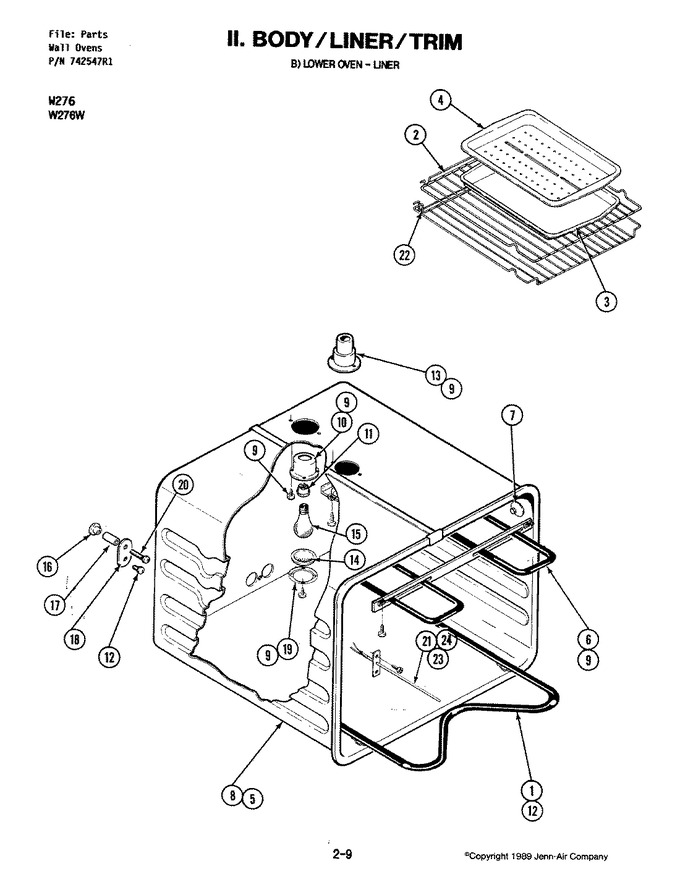

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY04100020		Element, Bake 240v   (Replaces: Y701724)	1		Immediately	$ 143.81
2	Y704661		Rack, Oven	1	Appelez-nous	-
3	4396923		Pan, Broil   (Replaces: 703164)	1		Immediately	$ 54.64
4	4396923		Insert, Broil Pan   (Replaces: 703165)	1		Immediately	$ 54.64
5	Y702618		Clip, Oven	1	Appelez-nous	-
6	WPY04100514		Element, Broil   (Replaces: Y704667)	1			$ 145.92
7	712088		Cover, Meat Probe	1	Appelez-nous	-
8	Y712594		Liner, Oven	1	Appelez-nous	-
9	WP1163283		Screw   (Replaces: Y703741)	1			$ 6.80
10	704142		Receptacle, Holder	1	Appelez-nous	-
11	Y704145		Receptacle, Snap-in	1	Appelez-nous	-
12	WP179051		Screw   (Replaces: 708764)	1		Immediately	$ 7.58
13	701738		Tube, Vent	1	Appelez-nous	-
14	Y704143		Lens, Light	1	Appelez-nous	-
15	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	1		Immediately	$ 17.51
16	715294		Nut, Tee	1	Appelez-nous	-
17	701741		Spacer, Oven	1	Appelez-nous	-
18	701742		Plate, Grounding	1	Appelez-nous	-
19	Y704144		Retainer, Lens	1	Appelez-nous	-
20	705170		Screw	1	Appelez-nous	-
21	Y704801		Harness, Wire Sensor	1	Appelez-nous	-
21	12001656		Sensor, Oven   (Replaces: Y704657)	1		Immediately	$ 45.13
21	Y04100259		Adaptor	1	Appelez-nous	-
21	704802		Harness, Wire (lwr)	1	Appelez-nous	-
21	12001656		Sensor   (Replaces: Y04100258)	1		Immediately	$ 45.13
22	Y704663		Rack, Oven (offset)	1	Appelez-nous	-
23	WPW10253196		Screw   (Replaces: Y707113)	1			$ 4.16
24	704823		Harness, Wire	1	Appelez-nous	-
