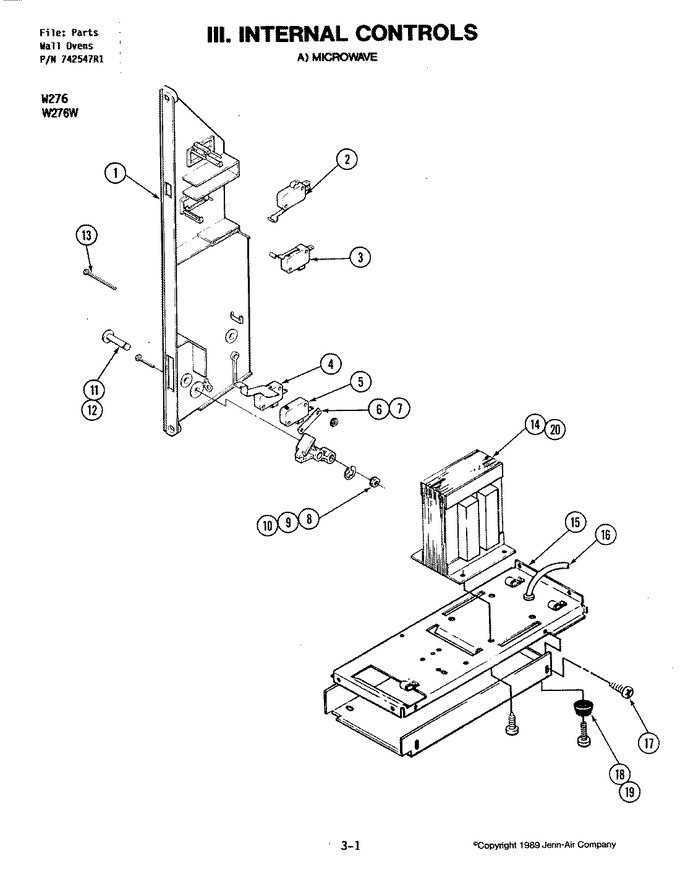

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 790135 | Bracket, Interlock | 1 |
|
- | ||||
| 2 | 790136 | Switch, Secondary Interlock | 1 |
|
- | ||||
| 3 | 790137 | Switch, Monitor Interlock | 1 |
|
- | ||||
| 4 | 790138 | Switch, Primary Interlock | 1 |
|
- | ||||
| 5 | 790139 | Switch, Logic Interlock | 1 |
|
- | ||||
| 6 | 790140 | Insulator, Switch | 1 |
|
- | ||||
| 6 | Y01100043 | Insulator, Switch | 1 |
|
- | ||||
| 7 | 790141 | Nut | 1 |
|
- | ||||
| 8 | 790142 | Nut | 1 |
|
- | ||||
| 9 | 790143 | Clip-retainer | 1 |
|
- | ||||
| 10 | 790144 | Latch, Door Interlock | 1 |
|
- | ||||
| 11 | 790145 | Pin, Lever & Pivot Latch | 1 |
|
- | ||||
| 12 | 790146 | Screw | 1 |
|
- | ||||
| 13 | 790147 | Screw | 1 |
|
- | ||||
| 14 | 790148 | Transformer | 1 |
|
- | ||||
| 15 | 790149 | Plate, Component Mounting | 1 |
|
- | ||||
| 16 | 790150 | Cord-power | 1 |
|
- | ||||
| 18 | 790152 | Foot-base | 1 |
|
- | ||||
| 19 | 790153 | Screw | 1 |
|
- | ||||
| 20 | WP489483 | Screw (Replaces: 790154) | 1 |
|
$ 10.27 |
