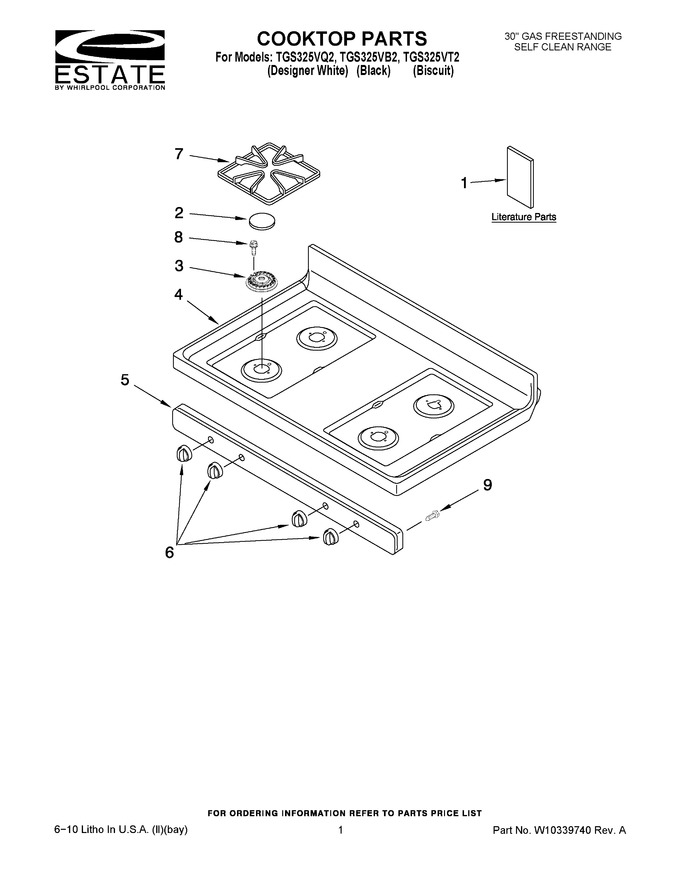

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10196161 | Installation Instructions |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9757143 | Anti-tip Template (english/french) |
|
- | |||||
| 1 | W10204320 | Owners Manual |
|
- | |||||
| 1 | W10198635 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | W10165808 | Cap, Burner (wetstone) |
|
- | |||||
| 2 | W10170553 | Cap, Burner (black) |
|
- | |||||
| 3 | WPW10406283 | Burner (lf-lr-rf) (Replaces: W10194076) |
|
$ 74.30 | |||||
| 3 | WPW10406243 | Burner (rr) (Replaces: 8286181) |
|
Immediately | $ 37.22 | ||||
| 4 | 8272251 | Cooktop (white) |
|
- | |||||
| 4 | 8272253 | Cooktop (black) |
|
- | |||||
| 4 | 8195546 | Cooktop (biscuit) (Replaces: 8272743) |
|
- | |||||
| 5 | WP8523854 | Panel, Manifold (white) (Replaces: 8523854) |
|
$ 276.74 | |||||
| 5 | 8523855 | Panel, Manifold (black) |
|
$ 167.79 | |||||
| 5 | 8523856 | Panel, Manifold (biscuit) |
|
- | |||||
| 6 | WP8273104 | Knob, Burner (white) (Replaces: 8273104) |
|
Immediately | $ 17.13 | ||||
| 6 | WP8273103 | Knob, Burner (black) (Replaces: 8273103) |
|
Immediately | $ 16.05 | ||||
| 6 | WP8273106 | Knob, Burner (biscuit) (Replaces: 8273106) |
|
$ 18.62 | |||||
| 7 | W10166294 | Grate, Burner (wetstone) |
|
$ 145.47 | |||||
| 7 | WPW10268483 | Grate, Burner (black) (Replaces: 8053580) |
|
$ 133.35 | |||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 7.13 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 |
