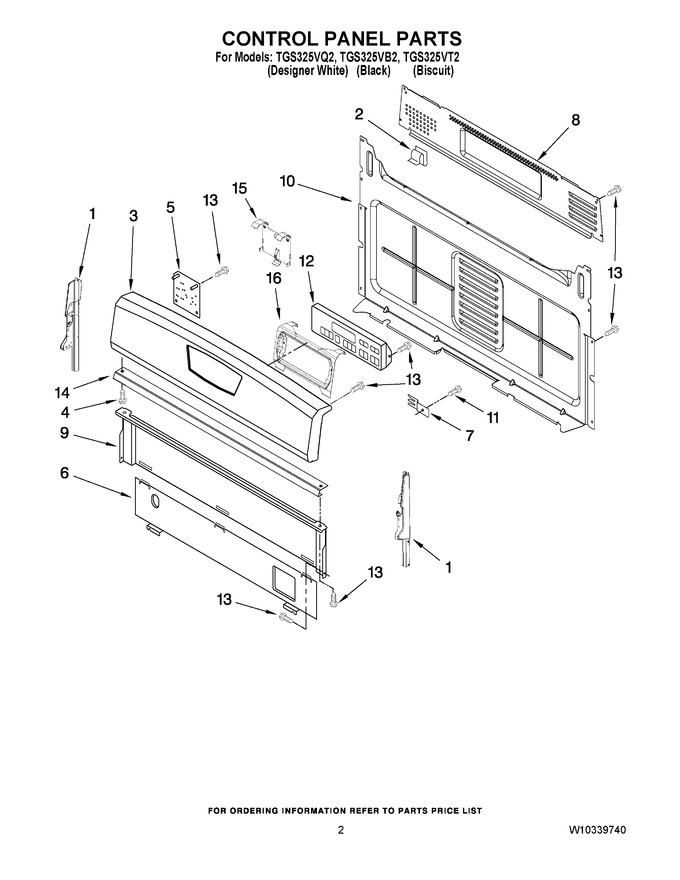

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Broiler Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219665		Endcap (black Rh)   (Replaces: W10184438)				$ 40.44
1	W11219370		Endcap (white Rh)   (Replaces: W10184434)				$ 57.93
1	W11219664		Endcap (black Lh)   (Replaces: W10184437)				$ 146.50
1	W11219365		Endcap (white Lh)   (Replaces: W10184433)				$ 40.43
1	W11230611		Endcap (biscuit, Lh)   (Replaces: W10184435)		Appelez-nous	-
1	W11230612		Endcap (biscuit, Rh)   (Replaces: W10184436)		Appelez-nous	-
2	WP8273564		Clip   (Replaces: 8273564)				$ 12.06
3	W10202183		Panel, Backguard (biscuit)		Appelez-nous	-
3	W10202189		Panel, Backguard (white)		Appelez-nous	-
3	W10202184		Panel, Backguard (black)		Appelez-nous	-
4	WP3400832		Screw (black)   (Replaces: 3196168)			Immediately	$ 7.75
4	3196166		Screw (white)				$ 7.01
5	WPW10331686		Module, Spark   (Replaces: 9758080)			Immediately	$ 393.86
6	8053505		Shield, Lower Heat				$ 157.99
7	8523412		Bracket, Support				$ 159.90
8	W10198745		Cover, Upper				$ 122.76
9	W10192841		Shield, Heat				$ 101.61
10	W10184370		Cover, Lower		Appelez-nous	-
11	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
12	W10271758		Control, Range (biscuit)		Appelez-nous	-
12	WPW10271757		Control, Range (white)   (Replaces: W10271757)				$ 169.48
12	W10271756		Control, Range (black)		Appelez-nous	-
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
14	W10211996		Bracket, Console		Appelez-nous	-
15	W10516463		Bracket, Dsi   (Replaces: W10137524)		Appelez-nous	-
16	W11230932		Bracket, Eoc   (Replaces: W10138683)			Immediately	$ 80.77
