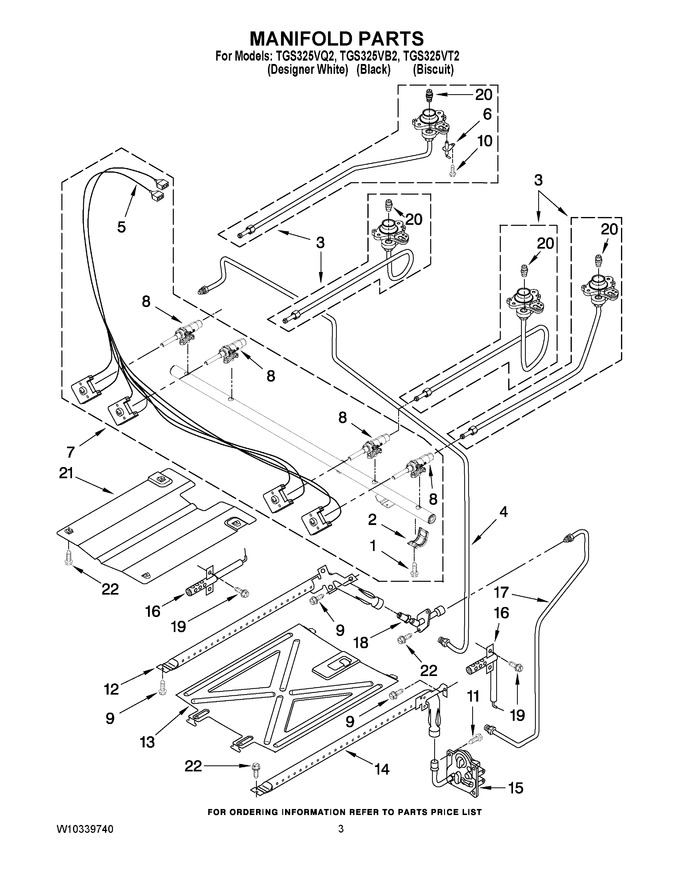

03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.97 | |||||
| 2 | W10949105 | Bracket, Saddle (Replaces: W10295996) |
|
$ 21.67 | |||||
| 3 | WPW10201350 | Tubing, Burner Asm (right Front) (Replaces: W10201350) |
|
$ 107.35 | |||||
| 3 | W10175217 | Tubing, Burner Asm (right Rear) |
|
$ 45.79 | |||||
| 3 | W10201351 | Tubing, Burner Asm (left Rear) |
|
- | |||||
| 3 | W10182369 | Tubing, Burner Asm (left Front) |
|
- | |||||
| 4 | W10314249 | Tubing (manifold To Regulator) |
|
- | |||||
| 5 | WPW10295998 | Harness, Ignitor (w/switches) (Replaces: W10295998) |
|
$ 217.36 | |||||
| 6 | WPW10216419 | Electrode (Replaces: W10216419) |
|
Immediately | $ 34.97 | ||||
| 7 | W10314242 | Assembly, Manifold |
|
$ 312.43 | |||||
| 8 | WPW10247744 | Valve (rr) (Replaces: W10247744) |
|
$ 266.78 | |||||
| 8 | WPW10279614 | Valve (lf, Lr, Rf) (Replaces: W10279614) |
|
$ 266.49 | |||||
| 9 | 3196265 | Screw |
|
- | |||||
| 10 | WP8273062 | Screw (4) (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 11 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.95 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
$ 227.96 | |||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 241.45 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 215.30 | |||||
| 15 | WPW10293048 | Valve, Regulator (Replaces: 9761959) |
|
Immediately | $ 442.66 | ||||
| 16 | WP9758079 | Igniter (bake) (Replaces: 9758079) |
|
Immediately | $ 41.01 | ||||
| 16 | WP8054129 | Igniter (broil) (Replaces: 8054129) |
|
Immediately | $ 137.14 | ||||
| 17 | 8272222 | Tubing (broiler Fitting To Valve) |
|
$ 97.58 | |||||
| 18 | 3186489 | Fitting, Broiler |
|
$ 64.58 | |||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 13.59 | |||||
| 20 | WPW10170508 | Orifice, Burner (lf & Rf) (Replaces: W10170508) |
|
$ 90.68 | |||||
| 20 | WPW10170507 | Orifice, Burner (left Rear) (Replaces: W10170507) |
|
$ 93.19 | |||||
| 20 | WPW10170506 | Orifice, Burner (right Rear) (Replaces: W10170506) |
|
$ 93.19 | |||||
| 21 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 22 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.02 | ||||
| NI | W10170529 | Spuds, Lp Gas |
|
- |
