01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Broiler Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

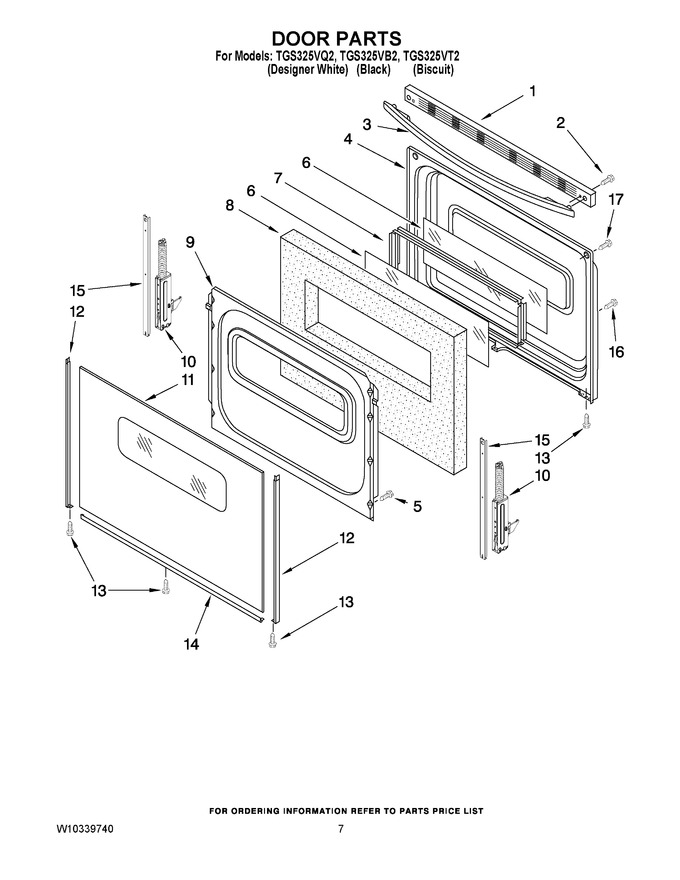

| 1 | W10016370 | Trim, Top (white) |
|
$ 79.85 | |||||
| 1 | W10016380 | Trim, Top (black) |
|
$ 80.76 | |||||
| 1 | W10016450 | Trim, Top (biscuit) |
|
$ 81.21 | |||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 8.69 | ||||
| 3 | WPW10202216 | Handle, Door (white) (Replaces: W10202216) |
|
$ 353.02 | |||||
| 3 | W10202218 | Handle, Door (biscuit) |
|
$ 101.67 | |||||
| 3 | WPW10202217 | Handle, Door (black) (Replaces: W10202217) |
|
$ 257.76 | |||||
| 4 | 9761340 | Liner, Door |
|
$ 343.92 | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | WP9758164 | Glass, Inner (Replaces: 9758164) |
|
$ 152.31 | |||||
| 7 | 3186290 | Frame, Glass |
|
- | |||||
| 8 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 96.54 | ||||
| 9 | 9761499 | Retainer, Insul. |
|
$ 309.84 | |||||
| 10 | W10347466 | Hinge, Door (2) (Replaces: 9761493) |
|
Immediately | $ 209.37 | ||||
| 11 | WP9762476 | Glass, Outer Door (white) (Replaces: 9762476) |
|
$ 316.82 | |||||
| 11 | 9762478 | Glass, Outer Door (biscuit) |
|
- | |||||
| 11 | WP9762477 | Glass, Outer Door (black) (Replaces: 9762477) |
|
$ 314.40 | |||||
| 12 | W10761018 | Trim, Door Side (black L.h.) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 12 | WP8523167 | Trim, Door Side (biscuit R.h.) (Replaces: 8523167) |
|
$ 113.43 | |||||
| 12 | WP8523173 | Trim, Door Side (biscuit L.h.) (Replaces: 8523173) |
|
$ 117.65 | |||||
| 12 | W10761014 | Trim, Door Side (black R.h.) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 12 | WP8523166 | Trim, Door Side (white R.h.) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 12 | WP8523172 | Trim, Door Side (white L.h.) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.19 | ||||
| 14 | WP8523178 | Trim, Bottom (biscuit) (Replaces: 8523178) |
|
$ 154.07 | |||||
| 14 | W11594186 | Trim, Bottom (white) (Replaces: 8523175) |
|
Immediately | $ 58.45 | ||||
| 14 | WP8523177 | Trim, Bottom (black) (Replaces: 8523177) |
|
Immediately | $ 157.96 | ||||
| 15 | W11502236 | Strap, Door (2) (Replaces: W10113759) |
|
Immediately | $ 26.36 | ||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.82 | ||||
| 17 | WPW10200660 | Screw,10-16 X 3/4 (Replaces: W10200660) |
|
Immediately | $ 7.78 |
