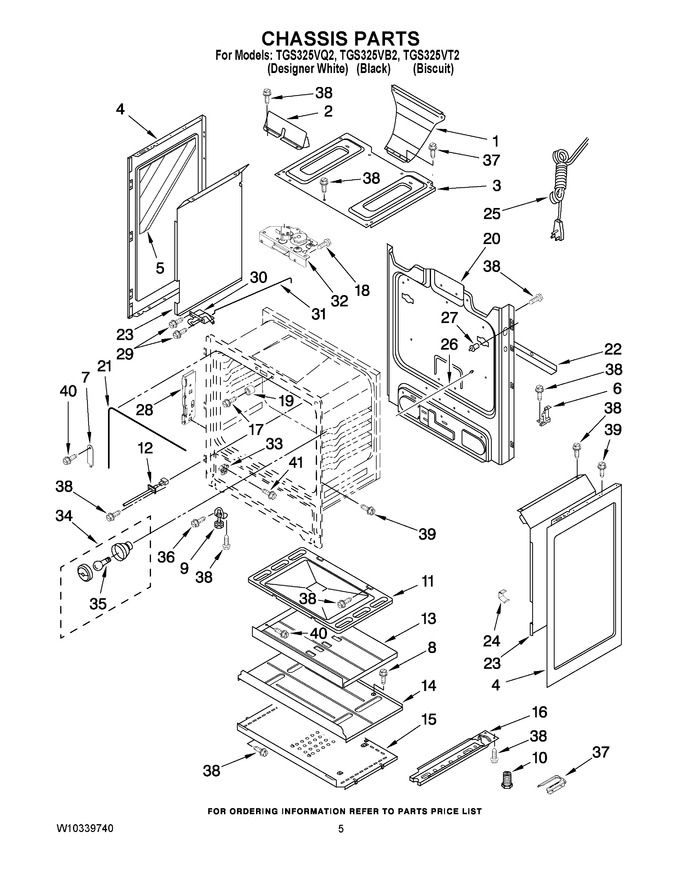

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11457094		Flue Box   (Replaces: W10153186)				$ 150.29
2	WP8272747		Shield, Flue   (Replaces: 8272747)				$ 70.96
3	W11379351		Burner Box   (Replaces: 8273036)				$ 61.13
4	W10162246		Panel, Side (2) (biscuit)   (Replaces: 8272519)				$ 196.10
4	WPW10575396		Panel, Side (2) (white)   (Replaces: 8053830)				$ 148.71
4	W11730303		Panel, Side (2) (black)   (Replaces: 8053832)			Immediately	$ 164.83
5	W10182346		Insulation				$ 77.83
6	8523249		Brkt, Manifold Mtg		Appelez-nous	-
7	9761517		Clip, Door Mntg (2)				$ 45.82
8	WP7101P246-60		Screw   (Replaces: 3196177)				$ 7.75
9	WP3196037		Foot, Front (2)   (Replaces: 3196037)				$ 82.97
10	WPW10058460		Foot, Rear (2)   (Replaces: W10058460)			Immediately	$ 7.85
11	WP3195097		Bottom, Oven   (Replaces: 3195097)				$ 237.71
12	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 106.83
13	8053967		Spreader, Flame Oven				$ 300.91
14	8053969		Shield, Heat				$ 107.66
15	8053968		Shield, Lower		Appelez-nous	-
16	W11818353		Rail, Base (2)   (Replaces: 9760314)				$ 59.68
17	WP3400832		Screw   (Replaces: 3196168)			Immediately	$ 7.75
18	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.19
19	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 53.39
20	W10222733		Back, Main		Appelez-nous	-
21	W11542153		Seal, Oven   (Replaces: 8522416)			Immediately	$ 50.20
22	8053971		Brace, Main Back				$ 7.82
23	9761448		Retainer, Insul. (right Hand)		Appelez-nous	-
23	9761449		Retainer, Insul. (left Hand)				$ 317.63
24	W10137382		Clip, Panel (4)			Immediately	$ 46.11
25	W11582239		Cord, Power   (Replaces: 9757891)				$ 16.75
26	9757239		Rod - Dr Switch				$ 91.78
27	WP9757262		Switch, Door   (Replaces: 9757262)			Immediately	$ 144.44
28	W10647259		Brkt-hinge   (Replaces: 9760407)			Immediately	$ 9.32
29	W11169708		Screw (2)   (Replaces: 3196560)				$ 13.36
30	WP9761013		Latch, Door   (Replaces: 9761013)				$ 244.15
31	W10078370		Rod, Latch				$ 90.70
32	WPW10107820		Latch - Rear Asm   (Replaces: W10107820)				$ 294.81
33	WPW10114344		Glide, Front (2)   (Replaces: W10114344)			Immediately	$ 8.16
34	W11594027		Light Socket Assy   (Replaces: 3196701)			Immediately	$ 87.01
35	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 18.67
36	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.02
37	W11447673		Bracket, Anti-tip   (Replaces: 3192830)				$ 31.82
38	3196152		Screw				$ 8.99
39	WPW10067840		Screw   (Replaces: W10067840)				$ 7.76
40	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.02
41	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
NI	W11684915		Insulation, Wrap   (Replaces: 8524099)				$ 117.75
NI	W11688737		Insulation, Back   (Replaces: W10180437)				$ 116.89
NI	8053915		Insulation, Vent   (Replaces: 8272613)				$ 12.44
