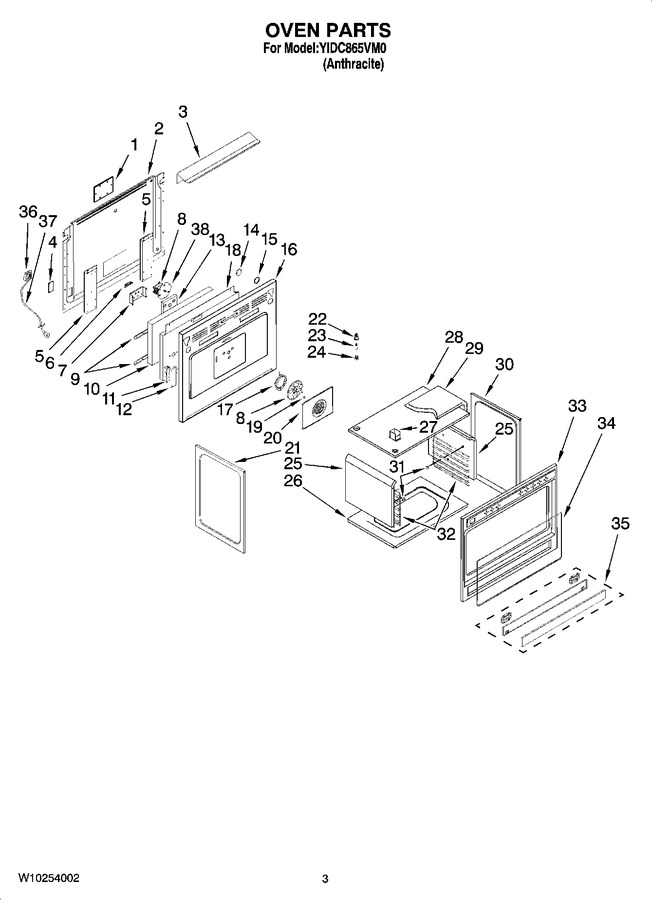

03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cooktop Parts


07 - Burner Box And Manifold Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10250220		Cover, Terminal		Appelez-nous	-
2	W10202951		Cover, Rear		Appelez-nous	-
3	W10250320		Support		Appelez-nous	-
4	W10250251		Cover, Access				$ 48.59
5	W10250632		Duct, Air (left)		Appelez-nous	-
5	W10250631		Duct, Air (right)		Appelez-nous	-
6	W10204066		Block, Terminal		Appelez-nous	-
7	W10205086		Bracket, Mounting		Appelez-nous	-
8	W10202965		Motor, Fan-assy		Appelez-nous	-
9	W10250624		Brace (4)		Appelez-nous	-
10	W10250219		Insulation		Appelez-nous	-
11	W10204065		Module, Spark		Appelez-nous	-
12	W10250243		Bracket, Mounting		Appelez-nous	-
13	W10250230		Insulation		Appelez-nous	-
14	W10250627		Cover, Access		Appelez-nous	-
15	W10250242		Seal, Rear				$ 32.11
16	W10205082		Liner, Back		Appelez-nous	-
17	W10202964		Element, Convction		Appelez-nous	-
18	W10250830		Panel, Rear Wall		Appelez-nous	-
19	W10250250		Nut M5		Appelez-nous	-
20	W10202966		Cover, Fan				$ 22.10
21	W10245737		Side, Left		Appelez-nous	-
22	W10204404		Socket, Light				$ 22.77
23	W10204403		Bulb, Light				$ 31.63
24	W10250212		Lens, Light				$ 39.83
25	W10205079		Side, Oven (2)		Appelez-nous	-
26	W10250205		Bottom, Oven		Appelez-nous	-
27	W10250221		Box, Wiring		Appelez-nous	-
28	W10202953		Top, Oven		Appelez-nous	-
29	W10205084		Insulation				$ 149.56
30	W10245738		Side, Right		Appelez-nous	-
31	W10250227		Clamp, Rack Supprt		Appelez-nous	-
32	W10250225		Support, Rack		Appelez-nous	-
33	W10202954		Frame, Front		Appelez-nous	-
34	W10250211		Gasket, Door		Appelez-nous	-
35	W10245754		Panel, Outer Drwr		Appelez-nous	-
36	W10251100		Board, Terminal		Appelez-nous	-
37	W10251113		Cord, Power		Appelez-nous	-
38	W10250231		Bracket, Fan Mtr		Appelez-nous	-
