01 - Control Panel Parts
02 - Top Venting Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Cooktop Parts
07 - Burner Box And Manifold Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

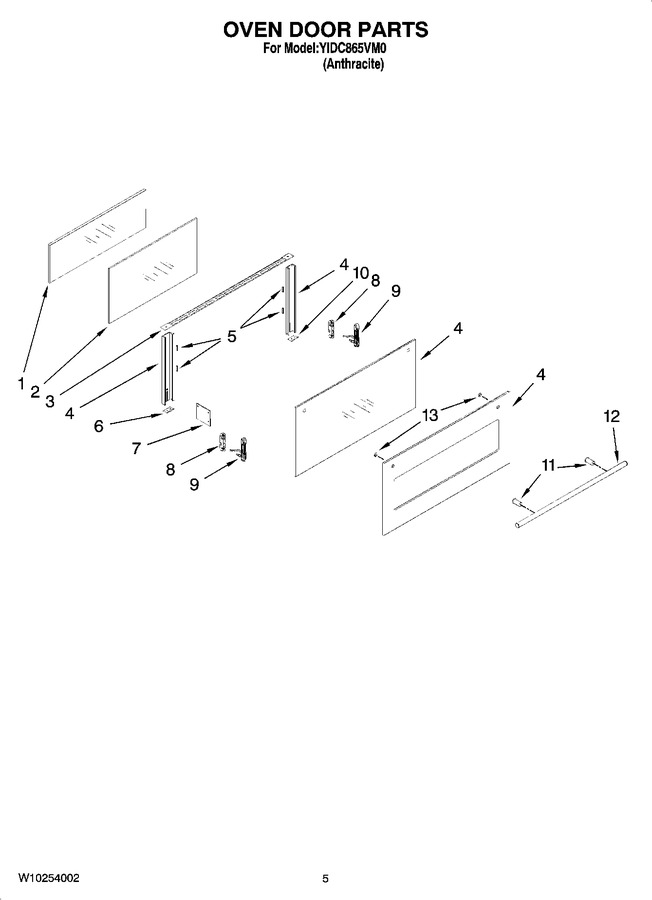

| 1 | W10250207 | Glass, Double |
|
- | |||||
| 2 | W10250214 | Glass, Triple |
|
- | |||||
| 3 | W10250629 | Support, Top |
|
- | |||||
| 4 | W10245759 | Glass, Outer Asy |
|
- | |||||
| 5 | W10250224 | Clip, Spring (double Clip (2)) |
|
- | |||||
| 5 | W10250826 | Clip, Spring (small Double (2)) |
|
- | |||||
| 5 | W10250223 | Clip, Spring (spring (8)) |
|
- | |||||
| 6 | W10250228 | Support, Bttm Left |
|
$ 40.67 | |||||
| 7 | W10205085 | Cover, Roller |
|
- | |||||
| 8 | W10204408 | Roller, Hinge |
|
$ 42.70 | |||||
| 9 | W10202961 | Hinge, Door |
|
- | |||||
| 10 | W10250228 | Support, Bttm Rght |
|
$ 40.67 | |||||
| 11 | W10204297 | Spacer, Handle |
|
$ 56.14 | |||||
| 12 | W10250208 | Handle, Door |
|
- | |||||
| 13 | W10250247 | Spacer (handle) |
|
- | |||||
| 13 | W10250246 | Spacer (glass) |
|
$ 33.29 |
