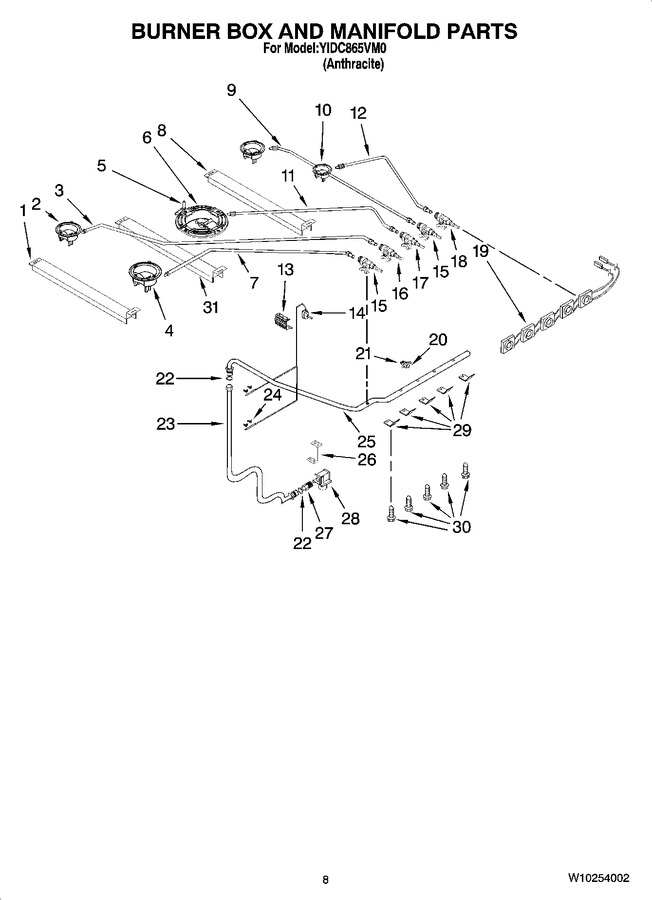

07 - Burner Box And Manifold Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10250318		Support, Burner		Appelez-nous	-
2	W10204302		Base, Burner-rapid		Appelez-nous	-
3	W10204071		Tubing, Gas-lr		Appelez-nous	-
4	W10204301		Base, Burner (2)		Appelez-nous	-
5	W10204406		Igniter, Tcb		Appelez-nous	-
6	W10204299		Base, Burner-tcb		Appelez-nous	-
7	W10204069		Tubing, Gas-lf		Appelez-nous	-
8	W10250313		Support, Burner		Appelez-nous	-
9	W10204070		Tubing, Gas-rr		Appelez-nous	-
10	W10204300		Base, Burner-aux		Appelez-nous	-
11	W10250210		Tubing, Gas-ctr		Appelez-nous	-
12	W10204068		Tubing, Gas-rf		Appelez-nous	-
13	W10204064		Switch, Oven		Appelez-nous	-
14	W10202967		Thermostat, Oven		Appelez-nous	-
15	W10203801		Valve, Gas-lf, Rr				$ 171.77
16	W10203799		Valve, Gas-lr				$ 197.91
17	W10204295		Valve, Gas-ctr				$ 163.58
18	W10203798		Valve, Gas-rf				$ 197.91
19	W10204304		Harness, Switch				$ 57.48
20	W10250620		Bracket, Thermstat		Appelez-nous	-
21	W10204053		Thermostat - 130c		Appelez-nous	-
22	W10250222		Washer		Appelez-nous	-
23	W10250244		Tubing, Gas				$ 127.85
24	W10250245		Clip, Spring		Appelez-nous	-
25	W10255330		Pipe, Manifold		Appelez-nous	-
26	W10250324		Bracket, Mounting				$ 42.96
27	W10205089		Fitting, Gas				$ 51.47
28	W10204056		Regulator		Appelez-nous	-
29	W10250323		Bracket, Valve				$ 31.91
30	W10250315		Screw		Appelez-nous	-
31	W10250317		Support, Burner		Appelez-nous	-
